SKU: 9265-0401-4 by Laticrete

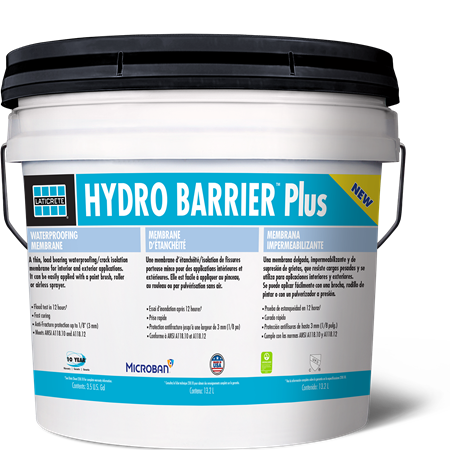

Laticrete Hydro Barrier Plus Waterproofing Membrane 1 gal

Laticrete (9265-0401-4) product

Currently unavailable for your ZIP code

Please edit your ZIP code or contact us for more informations

Visit more Laticrete Hydro Barrier Plus products

Additional details

HYDRO BARRIER Plus is a thin, load bearing, self-curing liquid rubber polymer which can be easily applied to form a flexible seamless waterproofing membrane / crack isolation membrane. It can be used on interior and exterior, horizontal or vertical surfaces and is approved by IAPMO for use as shower pan liner. Equipped with Microban antimicrobial product protection to protect the membrane from the growth of stain and odor causing bacteria, mold and mildew. Learn about additional waterproofing and crack isolation solutions.

  • Allows for flood testing in 12 hours (When cured 70°F (21°C) or higher at 50% RH lower temperature at higher RH will require long cure times)
  • Thin; only 0.020–0.030" (0.5–0.8 mm) thick when cured
  • Changes in color from a light blue to darker blue when cured
  • Lighter color for ease of inspection and enhanced visibility during application
  • Anti-fracture protection of up to 1/8" (3 mm) over shrinkage and other non-structural cracks
  • No additional fabric required
  • “Extra Heavy Service” rating per TCNA performance levels (RE: ASTM C627 Robinson Floor Test)
  • Exceeds ANSI A118.10 and A118.12 and IAPMO approved
  • Thickness when Dry : 20-30 mils (0.5-0.8 mm)

Manufacturer
Laticrete
Antimicrobial
Equipped with Microban antimicrobial technology
Certification
Exceeds ANSI A118.10 and A118.12 | IAPMO approved | Greenguard
Collection Name
Hydro Barrier Plus
Coverage (m²)
4.6
Coverage (sqft)
50.00
Cure Time
Allow membrane to cure fully (typically 12 hours at 70°F (21°C) and 50% RH before flood testing); flood test prior to applying tile or stone
Indoor Usage
Yes
Liter (L)
3.8
Outdoor Usage
Yes
Relative Humidity
0.75
Shelf Life
Factory sealed containers of this product are guaranteed to be of first quality for two (2) years if stored off the ground in a dry area. *** High humidity will reduce the shelf life of bagged product
Shrinkage
Anti-fracture protection of up to 1/8" (3 mm) over shrinkage and other non-structural cracks
Tensile Strength
7 days : 250-300 psi (1.8-2.1 Mpa)
U.S. Gallon
1
Use For
Swimming pools, fountains and water features | Shower pans, stalls and tub surrounds | Spas and hot tubs | Bathrooms and laundries | Kitchen and food processing areas | Terraces and balconies over unoccupied spaces | Countertop and facades | Steam rooms (when used in conjunction with a vapor barrier)
Use On
Concrete and Brick Masonry, Cement Mortar Bed, Cement Plaster, Ceramic Tile and Stone, Cement Terrazzo, Cement Backer Board, Poured Gypsum Underlayment, Wall Board, Hydro Ban Board
Warranty
1-Year Product Limited | 5-Year & 10-Year System Limited
Water Resistant
Yes

  • Technical Data Sheet DS-36640 Hydro Barrier Plus (2021)
  • Safety Data Sheet HYDRO BARRIER PLUS - SDS (2021)
  • Certification HYDRO BARRIER Plus - HPD (2021)
  • Certification GREENGUARD - HYDRO BARRIER Plus (2021-2023)
  • Certification IAPMO (2021)
  • Sales Sheet Membrane Solutions Brochure (2021)
  • Sales Sheet HYDRO BARRIER Plus (2021)
  • User Guide HYDRO BARRIER Plus Installation Instructions (2021)
  • Warranty Document 1-Year Product Limited Canada (2021)
  • Warranty Document 5-Year System Limited Canada (2022)
  • Warranty Document 10-Year System Limited (2023)
