SKU: FG10044 by Barricade

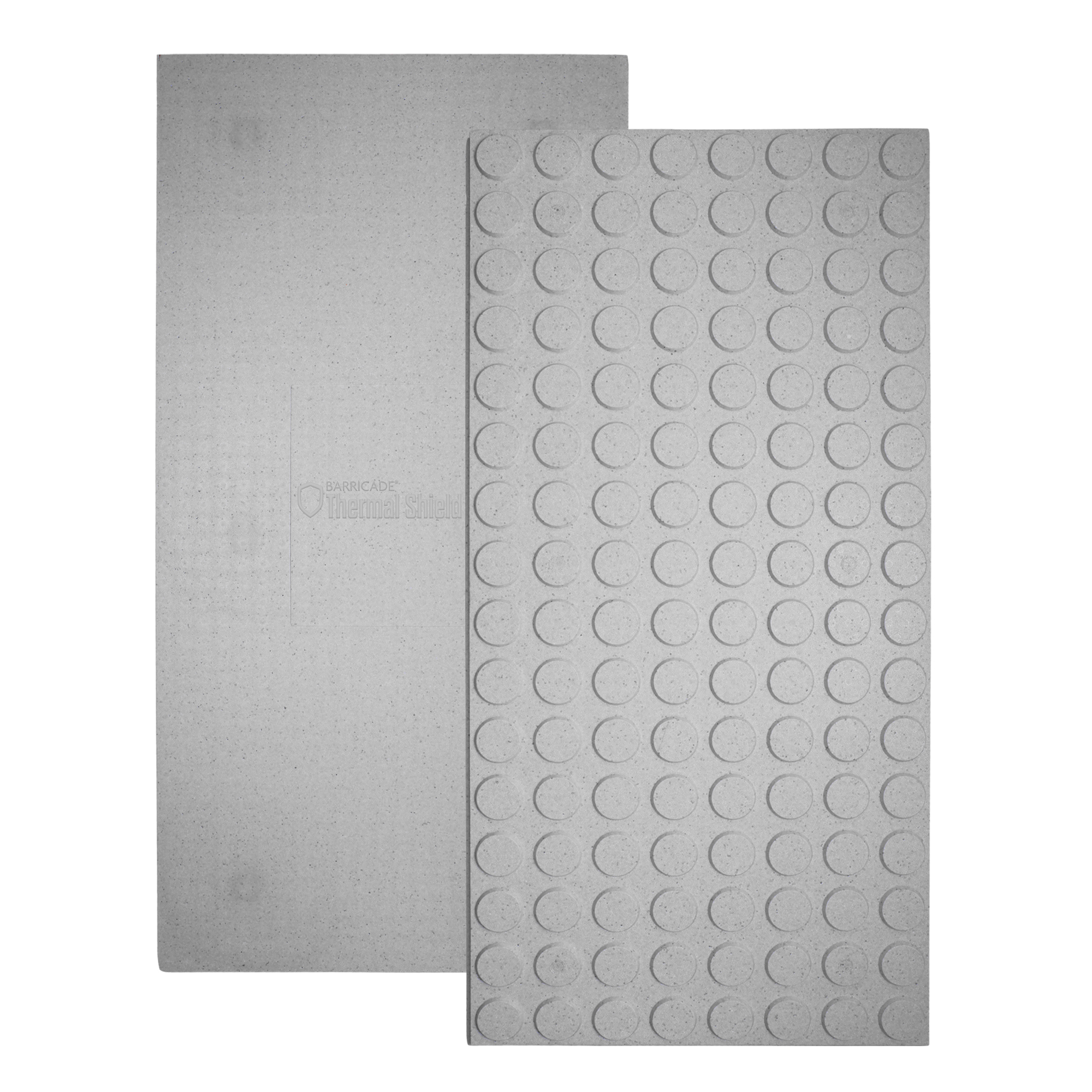

Barricade Insulating Underlayment Thermal Shield 23-1/4" x 47-1/4" - 25 mm (91.55 sqft)

Insulating Underlayment Thermal Shield 23-1/4" x 47-1/4" - 25 mm (91.55 sqft)
Barricade (FG10044) product

Currently unavailable for your ZIP code

Please edit your ZIP code or contact us for more informations

Additional details

BARRICADE Thermal Shield is the most premium subfloor. With an R-value of 4.1, BARRICADE Thermal Shield provides one of the highest R-values in the market, meaning maximum warmth and comfort for your family. It’s specially engineered with a high-density inorganic EPS foam that’s durable enough to hold up to 3,650 pounds per square foot but still weighs less than 2 pounds per panel! Plus BARRICADE Thermal Shield is very easy to install. It can be cut with a knife – no power tools required! Plus the tongue and groove fit together with no gap so no taping is needed! BARRICADE Thermal Shield provides the most insulating power in a subfloor yet. It is specially engineered with 100% inorganic EPS foam that is lightweight and doesn’t require power tools to cut it, making it even easier to install.

  • Strong enough to support up to 3,650 lbs/sq.ft. (1,659 kg/sq. ft.)
  • Helps promote healthy indoor air quality
  • No power tools required and can be cut with a utility knife
  • Specially designed to protect hard surface floors (LVT/LVP, laminate, engineered hardwood)
  • Limited 25 year warranty
  • Lightweight (1.6 lbs/0.7 kg) and convenient 23.25" x 47.25" size

Manufacturer
Barricade
Acoustic
No
Collection Name
Barricade Therma Shield
Coverage (sqft)
91.55
Length (cm)
120
Length (ft)
3.94
Length (in.)
47.25
Length (inches in fraction)
47-1/4
Material
EPS Foam
Thickness (cm)
2.5
Thickness (in.)
1
Thickness (inches in fraction)
1
Thickness (mm)
25
Use For
Hard-surface floors such as luxury-vinyl tile/panel (LVT/LVP), laminate, engineered hardwood
Warranty (years)
25
Weight (kg)
0.7
Weight (lb)
1.6
Width (cm)
59
Width (ft.)
1.94
Width (in.)
23.25
Width (inches in fraction)
23-1/4

  • User Guide Installation Therma Shield (2024)
