SKU: DCN680B by DeWalt

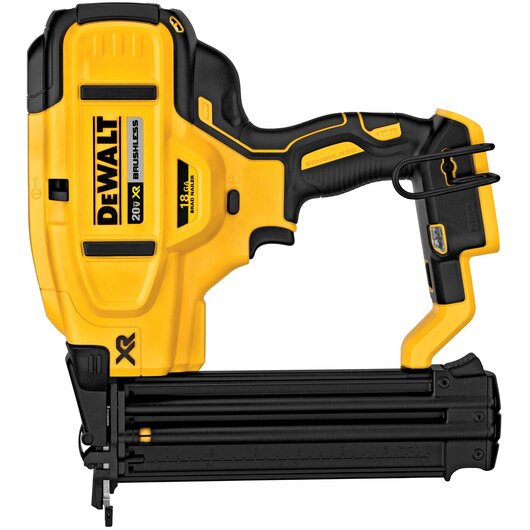

DeWalt Cordless Brad Nailer 20V MAX XR

DeWalt (DCN680B) product

Currently unavailable for your ZIP code

Please edit your ZIP code or contact us for more informations

Additional details

TOOL ONLY The DEWALT DCN680 18 Gauge Brad Nailer drives 18 Gauge brad nails from 5/8 in. to 2-1/8 in. which makes it ideal for fastening decorative molding, casing, kitchen crown, and shoe molding. With its brushless motor powered by a DEWALT 20V MAX Lithium-Ion battery the DCN680 is ready to work without the hassle of using gas, compressor, and hose. Tackle jobs both large and small with the features of a pneumatic tool and the freedom of cordless. Maximum initial battery voltage (measured without a workload) is 20 volts. Nominal voltage is 18.

  • Fully battery powered. No need for a compressor, hose or gas cartridge
  • Brushless motor for longer life and durability
  • Smaller tip size for better line of sight and accurate nail placement (compared to DC608)
  • Tool-free adjustment of driving depth for greater accuracy
  • Tool-less release mechanism for quick and easy release of jammed nails
  • Multi-functional LED lights to illuminate the work area and provide diagnostic information
  • Tool-less switch to select between sequential and pulse modes
  • Built-in tool-free release lever to quickly replace the push rod if it gets stuck
  • Adjustable belt clip for left or right hand carry
  • Locking device when magazine is nearly empty to prevent empty triggering and unwanted marks on the workpiece

Manufacturer
DeWalt
Battery Chemical Composition
Lithium-Ion
Corded or Cordless
Cordless
Fastener Length (inches in fraction)
5/8" to 2-1/8"
Height (in.)
4.49
Height (inches in fraction)
4-31/64
Length (in.)
12.99
Length (inches in fraction)
12-63/64
Nail Type
Gauge 18 (5/8" to 2-1/8")
Trigger Mode
Tool-free selection switch
Use For
Decorative moldings, kitchen moldings, door and window frames, quarter rounds, cabinet making
Voltage (V)
20
Warranty
3-year limited warranty; 1-year free maintenance; 90-day money-back guarantee
Weight (kg)
2.79
Weight (lb)
6.15
Width (in.)
11.6
Width (inches in fraction)
11-19/32
