SKU: 59SUPAL by Profilitec

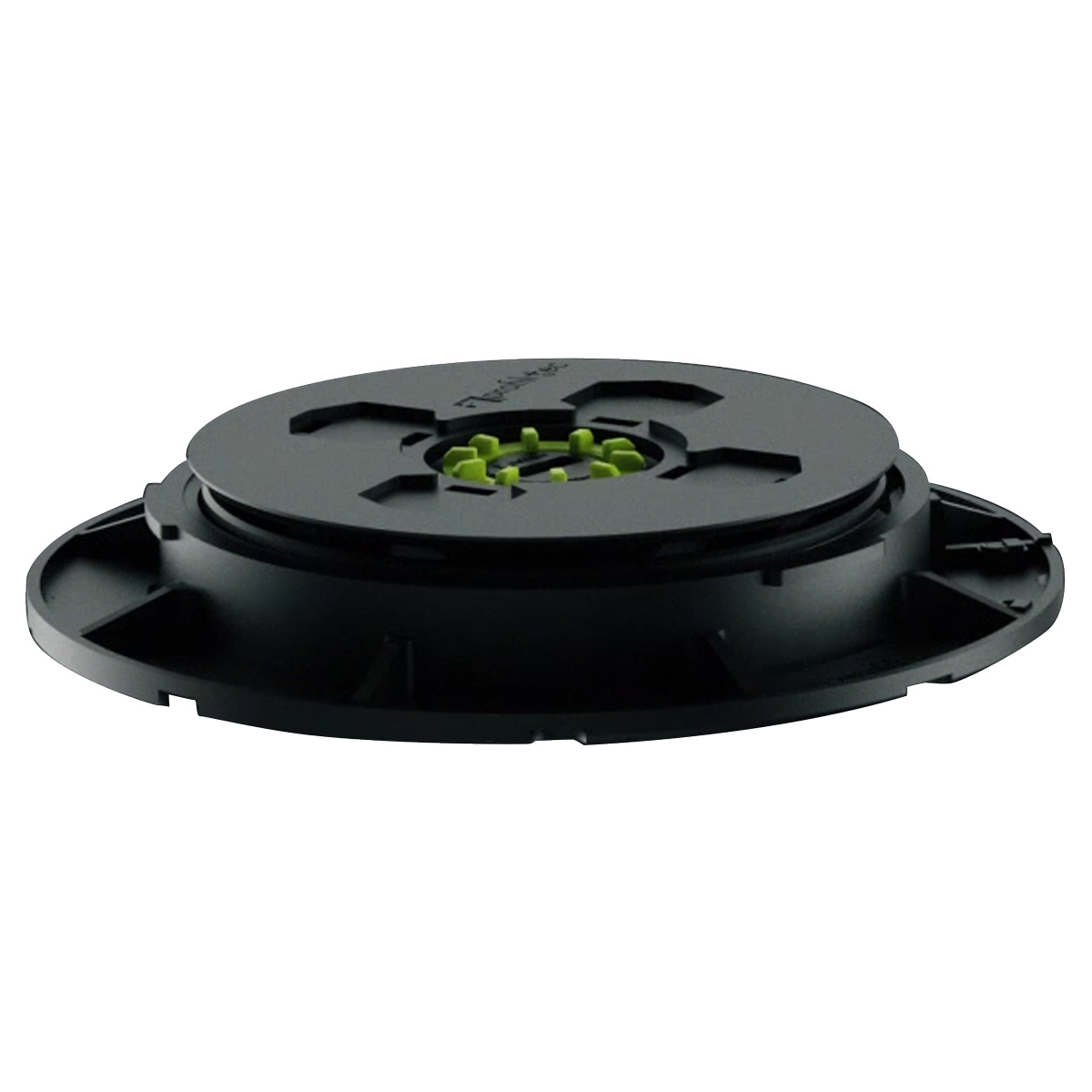

Profilitec Tile Paver Support Uptec SUPAL from 1-3/32" (27.8 mm) to 1-11/16" (42.9 mm)

Tile Paver Support Uptec SUPAL from 1-3/32" (27.8 mm) to 1-11/16" (42.9 mm)
Profilitec (59SUPAL) product

Currently unavailable for your ZIP code

Please edit your ZIP code or contact us for more informations

Additional details

The Uptec SUPAL support is adjustable in height from to 28 to 43 mm, with a base of 190 mm in diameter and a head of 130 mm. The support can be both self-leveling and fixed: by rotating the pre-included mechanism, it’s possible to switch from one mode to another in few seconds, without any additional accessory. When in self-leveling mode, the head can compensate slopes up to 5%. On the head it is possible to apply the accessories for standard installations (2mm spacers or 4mm spacers), the head for the wooden beam or to add the aluminium joist (on the head with 4mm spacers). Holes have been made on the base to allow the water to flow out, and on the lower side 4 pre-cut lines to easily cut the pedestals when you come to corners or perimeters.

Manufacturer
Profilitec
Collection Name
Uptec SUPAL
Maximum Height (inches in fraction)
1-11/16
Maximum Height (mm)
43
Minimum Height (inches in fraction)
1-3/32
Minimum Height (mm)
28
Use For
Supporting and leveling raised floors
Use With
Uptec SUPAR Stackable Rings, SUPA2 2 mm tabs, SUPA4 4 mm tabs, SUPAW wood tabs

  • Technical Data Sheet Uptec SUPAL (2023)
  • Information Document Uptec Disclaimer (2023)
