SKU: 299PFLEXUN by Raimondi

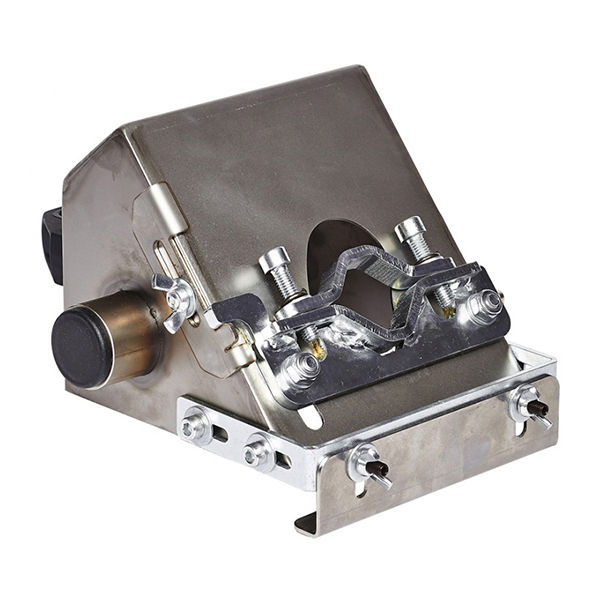

Raimondi Tile Cuting Guide RAI-CUT without Angle Grinder Stainless Steel

Tile Cuting Guide RAI-CUT without Angle Grinder Stainless Steel
Raimondi (299PFLEXUN) product

Currently unavailable for your ZIP code

Please edit your ZIP code or contact us for more informations

Additional details

Adjustable cutting box to apply a groove on the back of the tile - Device to cut the slot in th eback of the tile/slab. The Raimond Rai-Cut Grooving Tool is intended for use with the Rai-Fix Mechanical Fixing System for wall installation of tiles and stone slabs. The grooving tool has a universal attachment and is supplied with an angle grinder. The Rai-Cut cuts the required groove to the correct depth and angle in the back of the tile or stone and is adjustable to accommodate the 1/4" and 3/8" plates.

  • Made of stainless steel and it is provided with clutch hole for connecting a vacuum dust extractor
  • Part of the RAI-FIX system. RAI-CUT is fundamental to create the slot in the back of the tile/slab. Slot where to insert the RAI-FIX hook
  • RAI-CUT works on tiles/slabs with min thickness of 5 mm (0.20”)
  • RAI-CUT is made of stainless steel and it is provided with clutch hole for connecting a vacuum dust extractor (Ø 38 mm - 1 1/2”)
  • Thanks to its semi-universal attachment, RAI-CUT is compatible with the most popular brands and models of angle grinders
  • RAI-CUT cuts dry with diamond disc Ø 125 mm (5”)
  • RAI-CUT is supplied without angle grinder

Manufacturer
Raimondi
Collection Name
RAI-CUT
Dry Use
Yes
Material
Stainless Steel
Maximum Tile Thickness (in.)
1.2
Maximum Tile Thickness (inches in fraction)
1-13/64
Maximum Tile Thickness (mm)
30
Minimum Tile Thickness (in.)
0.2
Minimum Tile Thickness (inches in fraction)
13/64
Minimum Tile Thickness (mm)
5
Use With
Diamond Disc of 5" diamater
Weight (kg)
2.2
Weight (lb)
4.9
