Cutting system for large format tiles up to 332 cm - 10.9 ft. (447 cm - 14.7 ft. with optional extension), lightweight (9 Kg - 19.8 lbs) and easy to transport.
-

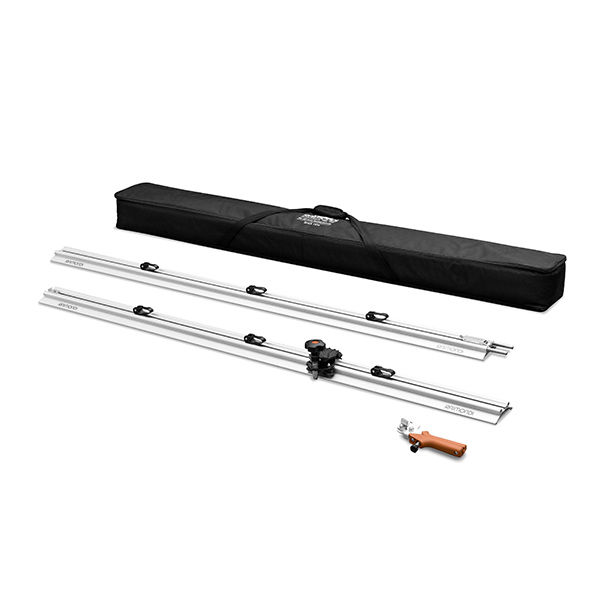

RAIZOR is composed by: two connectable guides with cutting length of 160 cm (5.2 ft.) each (332 cm - 10.9 ft. when combined);
die-cast cutting unit provided with wolfram carbide wheel Ø 16 mm (5/8”) and pin (pin rotates on bearings);
cutting-off pliers for tiles/slabs with thickness from 3 to 12 mm (1/8” - 1/2”);
everything packed in a padded bag with shoulder-straps and provided with inside modular compartments and pocket.
-
Supplied with SNAP cutting-off plier for 3-12 mm (1/8”-1/2”) thickness tiles
-
The resistant padded bag protects the product and allow to carry it easily. It has adjustable compartments and inside pocket for placing personal belongings or work tools
-
Guides are made of sturdy aluminum extruded profiles, each one with 3 stain-free suction cups Ø 88 mm (3 1/2”) - 6 suction cups in total
-
The suction cups, extremely useful while measuring the size of the cut to be made, prevent the cutting guide to move during the scoring, ensuring the maximum precision. Also, they prevent the cutting guide to overturn, no matter how much pressure is applied during the scoring: this allows to effectively score even high thickness tiles
-
The suction cups' handles perform a 180° movement in order not to interfere with the cutting unit
-
The cutting unit is made of die cast aluminum and runs onto the guide thanks to 3 polyoxymethylene (wearing-resistant material) wheels; each equipped with two internal bearings. It is provided with fine adjustment systems (factory-calibrated) allowing the perfect coupling of the cutting unit with the guide. This allows both to eliminates any kind of play and to perfectly align the wolfram-carbide cutting-wheel to the guide resulting in maximum efficacy, precision and quality of cut
-
To cut tiles thicker than 12 mm (1/2”) use the pliers 169TM01AN (accessory). Made of sturdy galvanized steel they are provided with knob to apply progressive and precise pressure exactly on the scoring line
-
The accessory extension (art. 433CRP100) offering a cutting length of 103 cm (3.4 ft.) if used alone, allows the RAIZOR system to reach a maximum length of cut of 447 cm (14.7 ft.) or 275 cm (9 ft.) by using only one profile/guide plus the extension
-
Add the cutting unit POWER-RAIZOR (accessory) to perform cuts (45°/90°/180°) with diamond disc
