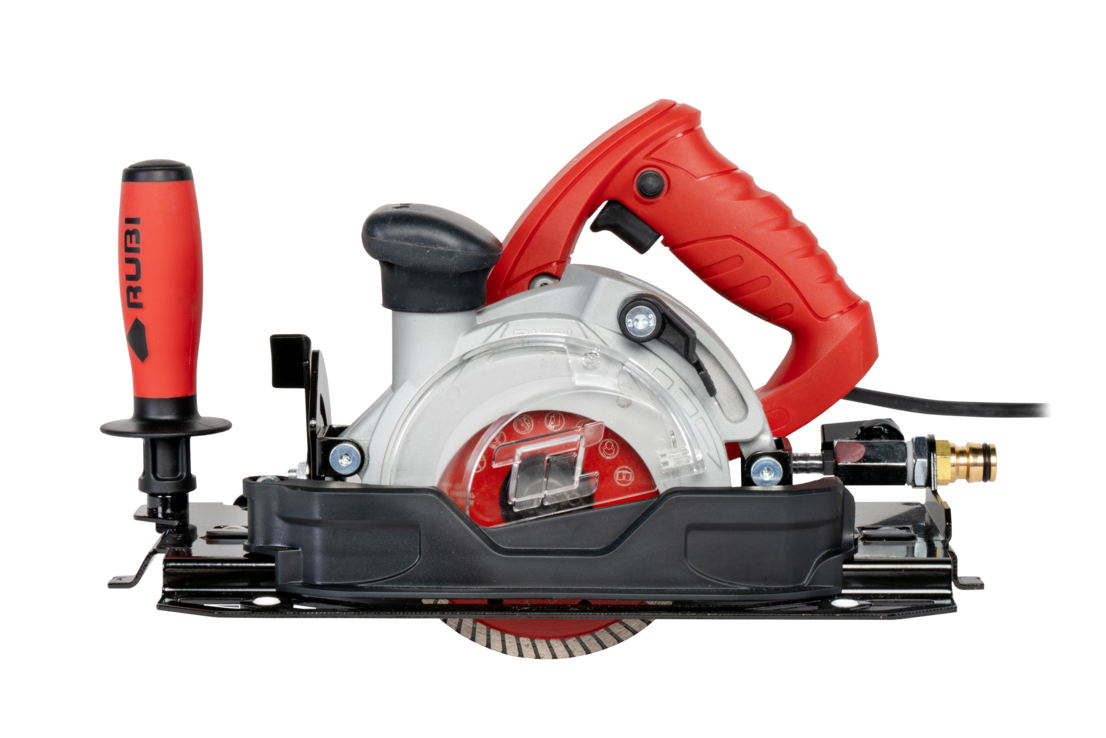

The circular saw TC-125 is part of the SLAB system for ceramic sheet and large format tiles. For the correct operation of the TC-125, the use of the SLIM cutting guides is NECESSARY. Thanks to this guidance system, we can obtain a precise and smooth cut. The sliding skid, carbon steel, of the TC-125G2, incorporates stainless steel radial bearings, with a very simple adjustment system that allows to have the machine in perfect condition. The circular saw TC-125 of RUBI, has a double system of reduction and control of the dust generated during cutting. Either, by means of its connection to a vacuum cleaner (dry cut) or, through the intake of water. The connection to the vacuum cleaner is 32 mm, but an adapter is included for other diameters. The water intake consists of a quick connection for 16 mm hose and a rubber stopper, which covers the intake of the vacuum cleaner and makes, during wet cutting, secondary grip functions, improving ergonomics during cutting. The head of the TC-125 is foldable up to 45º and adjustable in height. In this way, it is possible to miter and obtain special and more precise cuts (it must be taken into account that the thickness of the cut varies according to the diameter of the disc).

• Equipped with a carbon steel slide on adjustable double set stainless steel radial bearings
• Double dust reduction/control system. Dry and wet cutting
• Height-adjustable cutting head (saw effect), hinged from 0° to 45°. (miter). FAST adjustment system
