SKU: PENF190N by Progress Profiles

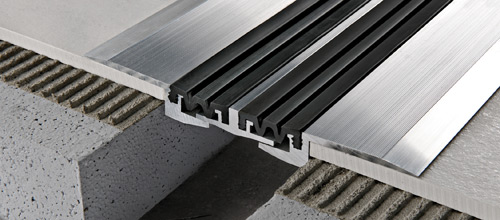

Progress Profiles Movement Joint with Neoprene Insert Proexpan 190 Black - (19 mm) 3/4" x 7-1/4" x 9' 10-1/8"

  1. •
  2. •
  3. •
Progress Profiles (PENF190N) product

Currently unavailable for your ZIP code

N/A - N/A

Please edit your ZIP code or contact us for more informations

Additional details

Proexpan 115-130-190-210 is a range of structural expansion joints in natural aluminium with knurled flat surface and a black or grey synthetic rubber insert. Made to withstand vertical, horizontal and transversal structural movements due to compressive and tensile stress in large buildings or complexes. The joint is laid on existing surfaces, also vertically, over the void between the two semi-detached surfaces of the same building or between two bays. It withstands frequent pedestrian traffic and also vehicles with rubber tyres that can load to 700 kgs. (PENF 190-210).

Manufacturer
Progress Profiles
Collection Name
Proexpan 190
Color
Black
Finish
Natural
Height (inches in fraction)
3/4
Height (mm)
19
Insert Type
Neoprene
Length (cm)
300
Length (m)
3
Manufacturer Color Name
Black
Material
Aluminum
Width (mm)
185

  • Sales Sheet Proexpan 115-130-190-210 (2022)
    Download
