The main function of the RUBI DELTA LS leveling system is to avoid the creation of installation eyebrows during the installation of ceramic tiles, both on floors and walls. The DELTA LS leveling system also prevents the movement of the tiles during the setting of the adhesive and, during installation, the number of corrections in the position of the ceramic tile itself is reduced. The basic principle of the DELTA LS leveling system is that of pressing the highest piece, until matching its position with the adjacent tiles, thus obtaining a substantial improvement of the surface flatness. The leveling system DELTA LS of RUBI is a system of wedges and flanges, recommended for formats of 30x30 cm or greater and varied thicknesses of up to 12, 15 or 20 mm, depending on the model of flange used. The use of the RUBI DELTA LS leveling system is fast, easy and intuitive. Once the installation is complete, the elements of the system are removed by impact (kick or mace), striking the flanges always in the direction of the joint. The DELTA LS leveling system wedges can be reused several times. The RUBI DELTA LEVEL SYSTEM clamp is designed to be used both in installation work of horizontal (floor) and vertical (cladding) ceramic tiles. The main function of the RUBI DELTA LS leveling clamp is to give the wedge the necessary pressure to allow the leveling of the ceramic tile; thus obtaining a homogeneous resulting flatness.

• For 12"x12" (30x30cm) formats and more. Always double gluing
• Ensures the flatness and regularity of the surface
• It avoids the generation of eyebrows during the laying of ceramic tiles, both in pavements and in coatings
• Different models available

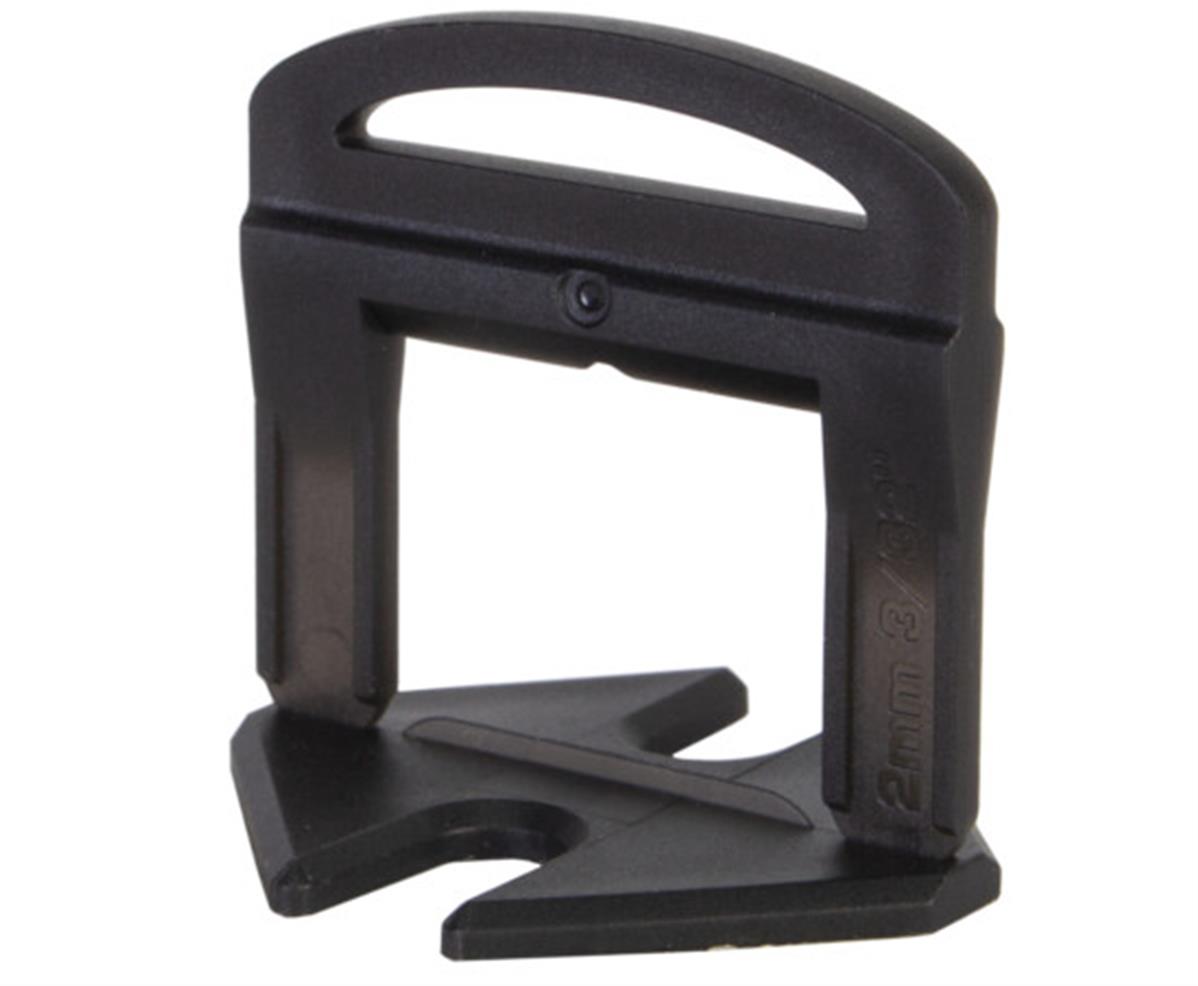

• The 2 mm (3/32") clip is suitable for tiles from 3 mm (1/8") to 12 mm (1/2") thick
