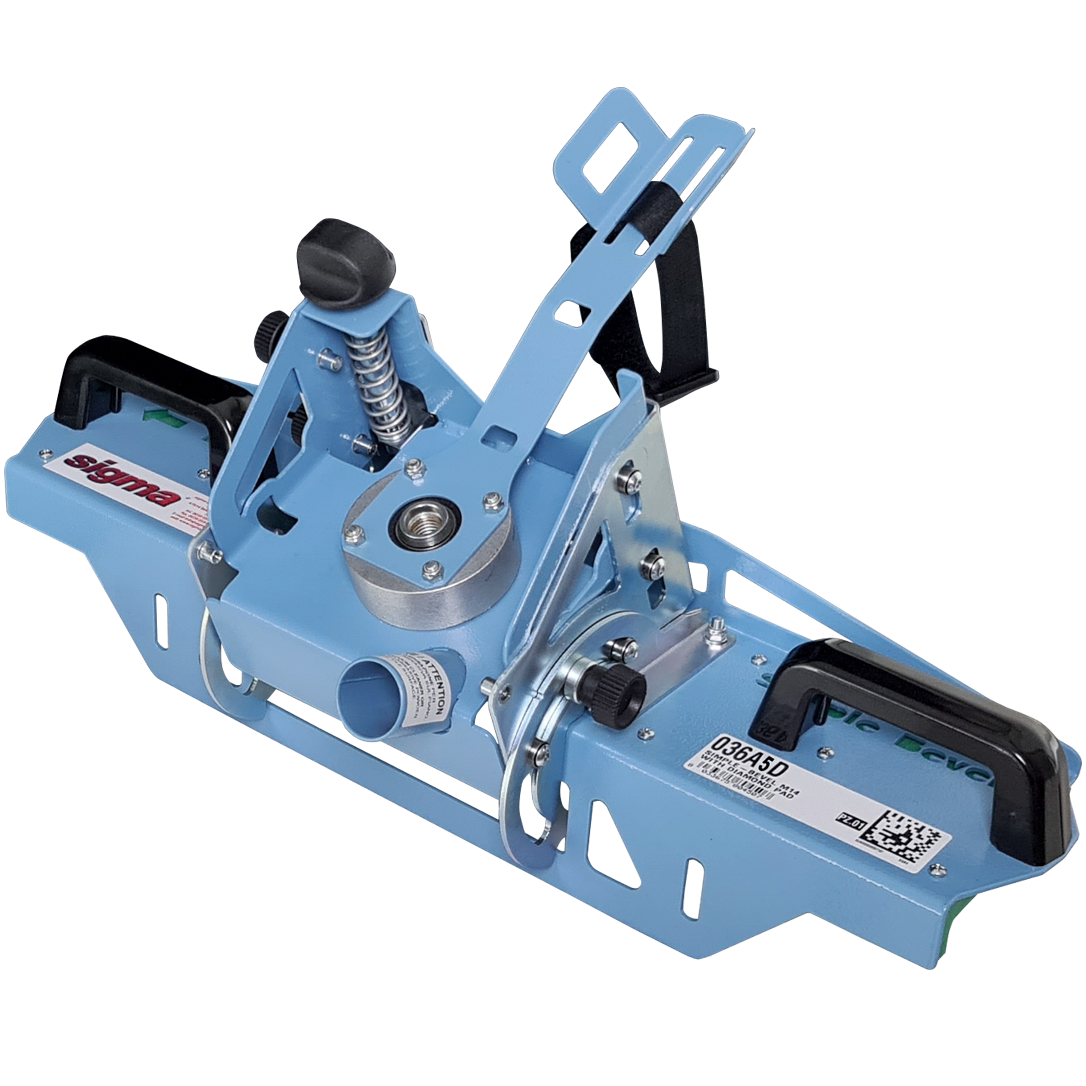

SIMPLE BEVEL Precision chamfer machine on gres porcelain tiles or Marble, Granite,Glass. Sliding resting on the edge of the tile, ensures the uniformity of the bevel along the entire length of the edge worked, following exactly the physiological curves of the slab; which would not be possible with a cutter guided by a rigid guide. Bevel from 0 to 12 mm ( from0 to 6mm on porcelain gres) Adjustable to any angle from 22 ° to 90 °. The BULL is obtained with multiple passes at different angles. (r. 6 native). Allows finishing of the lateral edge of the tile (max.30mm).
-
The machine 36A5/P with the kit 36C4, to be fixed on a table, and recommended for long and narrow tile working, like skirting tiles, strips of tile 3 to 20mm thick, etc.. and size from 30 cm to infinity
-
WIDE SHELF : Wide table top ensures perfect stability when working, the specific material of the table top allows easy sliding without scratching the tile
-
UNIVERSAL ATTACHMENT FOR GRINDERS : It is possible to mount any any grinder from 700 to 1400 W thanks to its 5/8"-11 connection
-
DUST EXTRACTION : Dust-free working thanks to universal vacuum connection
-
WITH OR WITHOUT WATER : Specially designed to be able to work in both ways. Use the "WATERKIT it is possible to work with an adjustable water jet for the maximum finish and to limit tool wear
-
HANDLES : When working on top of the tile, the handles provide an excellent grip without losing stability
-
The machine 37A2D-37A2PD with the kit 37C, to be fixed on a table, and recommended for long and narrow tile working, like skirting tiles
-
FIXING KIT ART. 36C4 : Particularly convenient for the series production of small parts such as skirting boards. The Fixing Kit allows the machine to be clamped on a plane support surface, manually moving the tile on the machine. It is possible to fix the stand on the Sigma 'Workbench' without the use of tools
-
SIDE HANDLES : When working on top of the tile, the handles provide an excellent grip without losing stability
