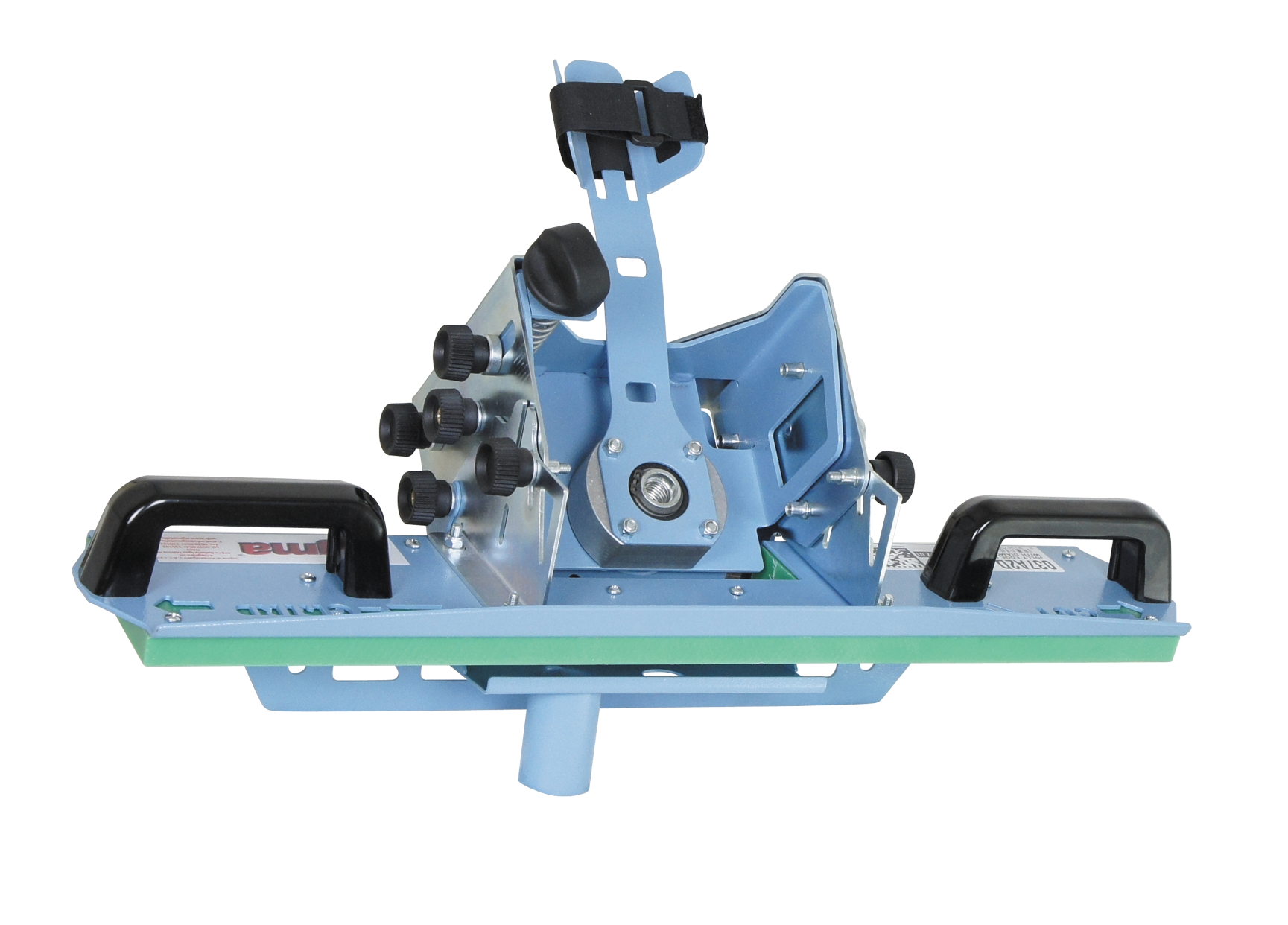

JOLLY EDGE Sliding resting on the edge of the tile / slab (stoneware, marble, granite, etc.), ensures the uniformity of the miter along the entire length of the edge worked, copying exactly the physiological shapes of the slab; which would not be possible with a cutter guided by a rigid guide. It can work in a single pass, tiles with thickness 5 <20mm and size from 30 cm to infinity. In the configuration with diamond blade, it allows the mitering at any angle from 40 ° to 50 °. In the configuration with diamond grinding wheel, it allows the execution of Bullnose with radius 6 - 8 - 10 mm. Group ready for grinder 700 - 1400W. Complete with blade disc art.75B , disk capacity max. 5".

• Mitering the tile edge, using a cutting disc and Bullnose profiling the edge tile, using a shaped grinding wheel
• In the 'Jolly' configuration allows cutting at any angle between 40° and 50°. (Y) , with baton adjustment (X), it can work in a single pass tiles with thickness 5-20 mm and size from 30 cm to infinit
• In the "Half Bull "allows the execution of round bevels (BULL) with radius 6 - 8 - 10 mm. It is possible to adjust the position of the grinding wheel ( X;Y ) to obtain the right machining
• WIDE SHELF : Wide table top ensures perfect stability when working, the specific material of the table top allows easy sliding without scratching the tile
• UNIVERSAL ATTACHMENT FOR GRINDERS : It is possible to mount any any grinder from 700 to 1400 W thanks to its 5/8"-11 connection
• DUST EXTRACTION : Dust-free working thanks to universal vacuum connection
• WITH OR WITHOUT WATER : Specially designed to be able to work in both ways. Use the "WATERKIT it is possible to work with an adjustable water jet for the maximum finish and to limit tool wear
• HANDLES : When working on top of the tile, the handles provide an excellent grip without losing stability
• The machine 37A2D-37A2PD with the kit 37C, to be fixed on a table, and recommended for long and narrow tile working, like skirting tiles
• FIXING KIT ART. 37C : Particularly convenient for the series production of small parts such as skirting boards. The Fixing Kit allows the machine to be clamped on a plane support surface, manually moving the tile on the machine. It is possible to fix the stand on the Sigma 'Workbench' without the use of tools
