SKU: KB196252440U30 by Schluter

Schluter KERDI-BOARD-U U-Shaped Building Panel with 11-13/16" Channel 24-1/2" x 96"

  1. •
  2. •
  3. •
  4. •

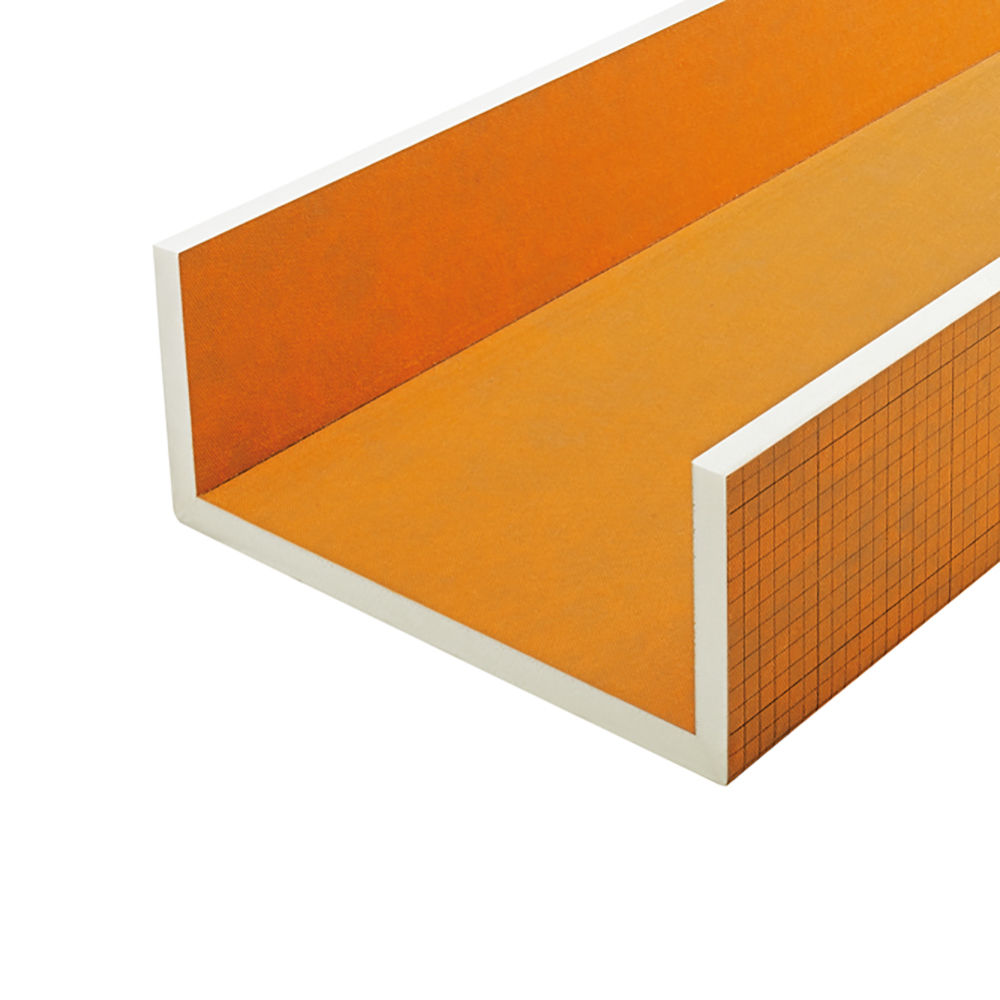

KERDI-BOARD-U U-Shaped Building Panel with 11-13/16" Channel 24-1/2" x 96"
Schluter (KB196252440U30) product

Currently unavailable for your ZIP code

Columbus - 43215

Please edit your ZIP code or contact us for more informations

Visit more Schluter KERDI-BOARD-U products

View all products from Schluter KERDI-BOARD-U
KERDI-BOARD-U U-Shaped Building Panel with 7-7/8" Channel 3/4" x 24-1/2" x 96"
KERDI-BOARD-U U-Shaped Building Panel with 7-7/8" Channel 3/4" x 24-1/2" x 96"

Additional details

Schluter-KERDI-BOARD-U is a U-shaped panel used to create pipe or column coverings. The panels feature V-shaped grooves and are shipped in a space-saving flat design, which makes them easy to store. The flat panels are also quick to cut to the necessary dimensions. Thin-set mortar, Schluter-KERDI-FIX adhesive, or double-sided adhesive tape is applied to the V-grooves. The panels are then folded prior to installation.

  • Ideal U-shaped substrate to conceal columns and exposed pipes
  • Flat panels are dust-free and easy to cut to size and install
  • Apply thin-set mortar, KERDI-FIX adhesive, or double-sided adhesive tape to V-groove to fold prior to installation
  • Waterproof and dimensionally stable
  • Lightweight and shipped in a space-saving flat design for easy storing
  • Fleece webbing for effective bonding of tile to the surface

Manufacturer
Schluter
Channel Width (in)
11.81
Channel Width (inches in fraction)
11-13/16
Channel Width (mm)
300
Collection Name
KERDI-BOARD-U
Flame Spread Indicator
(ASTM E84) Pass
Indoor Usage
Yes
Length (cm)
244
Length (ft)
8
Length (in.)
96
Length (inches in fraction)
96
Length (mm)
2440
Material
Extruded Polystyrene Foam
Outdoor Usage
No
Perm Rate (ASTM E96)
0.36 perms - 1/2" (12.5 mm)
Shower Approved
Yes
Surface Burning CAN/ULC-S102.2
Pass
Temperature Range
From -58°F to 158°F (-50°C to 70°C)
Thermal Barrier Evaluation
(NFPA 286) Pass
Thermal Resistance
(ASTM C518) R 9.1 - 2" (50 mm) | R 2.2 - 1/2" (12.5 mm) | R 0.9 - 3/16" (5 mm)
Thickness (cm)
1.9
Thickness (in.)
0.75
Thickness (inches in fraction)
3/4
Thickness (mm)
19
Use For
To conceal columns and exposed pipes
Use On
Floor & Wall | Creating tile substrates on masonry walls, wood or metal framing, and other finished wall surfaces; creating straight or curved partition walls; creating straight or curved bathtub and shower surrounds; concealing pipes and columns; as well as creating bathtub platforms, vanities, storage shelves, countertops, and various other bathroom structures
Use With
Thin-set mortar, KERDI-FIX adhesive, or double-sided adhesive tape
Warranty
KERDI-BOARD - 10 years Limited Warranty
Warranty (years)
10
Water Resistant
Yes
Waterproof
No
Weight (kg)
1.83
Weight (lb)
4.03
Width (cm)
62.5
Width (ft.)
2.04
Width (in.)
24.5
Width (inches in fraction)
24-1/2
Width (mm)
625

  • Technical Data Sheet KERDI-BOARD (2021)
    Download
