SKU: EV/Q125ACG by Schluter

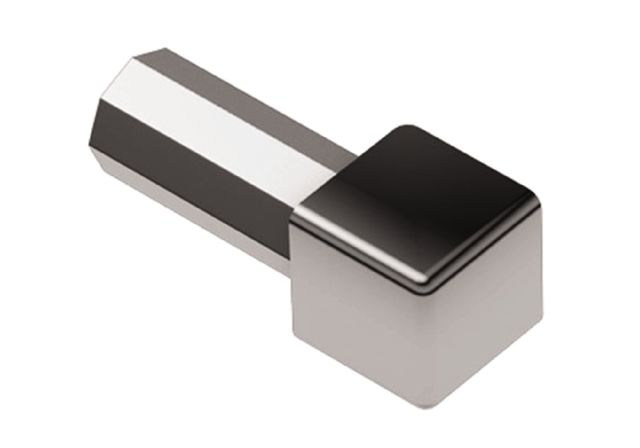

Schluter QUADEC Inside/Outside Corner 90° Anodized Aluminum Polished Chrome 1/2" (12.5 mm)

Schluter (EV/Q125ACG) product

Currently unavailable for your ZIP code

Please edit your ZIP code or contact us for more informations

Visit more Schluter QUADEC products

Additional details

Schluter-QUADEC is a finishing and edge-protection profile for the outside corners of tiled surfaces. It features a trapezoid-perforated anchoring leg that is secured in the mortar bond coat beneath the tile and a reveal that forms a square outer corner along the surface edge. The profile is available in stainless steel, stainless steel with structured finish, anodized aluminum and textured color-coated aluminum. QUADEC allows for modern decorative design and interesting contrasts. The profile can be combined with the QUADEC-FS feature strip profile and the DESIGNLINE border profile for further design options. In addition to its decorative effect, the profile protects tile edges against damage caused by mechanical stresses. QUADEC, in stainless steel, is particularly resistant to wear when used as edge protection. It may also be used as a stair nosing or floor transition profile. In addition, QUADEC is suitable for transitions, corners, or dado coverings with other covering materials; for example, carpet, parquetry, natural stone tiles, or poured epoxy coverings. The integrated joint spacer forms a defined joint cavity with the tile. Note: QUADEC in stainless steel does not feature the integrated joint spacer. Matching inside/outside corners and connectors are available.

  • Now available in 10-foot (3.05 m) lengths
  • Prevents tile edges from chipping
  • Can be incorporated as an accent within tile fields on floors and walls
  • Create modern decorative designs, interesting contrasts, and match with tile and grout
  • Combine with QUADEC-FS and/or DESIGNLINE for increased design options
  • QUADEC in stainless steel can be used as a stair nosing or floor transition profile
  • Now available in 9/32" (7 mm) height in stainless steel and brushed stainless steel
  • Available in stainless steel, anodized aluminum, PVC, textured and color-coated aluminum
  • Also available in square check and leather texture finishes

Manufacturer
Schluter
Anchoring Leg Type
Trapezoide-Perforated
Collection Name
QUADEC
Color
Gray
Color Number
ACG
Corner Angle
90
Corner Type
Inside/Outside Corner
Finish
Polished
Height (cm)
1.25
Height (in.)
0.5
Height (inches in fraction)
1/2
Height (mm)
12.5
Indoor Usage
Yes
Length (mm)
50
Manufacturer Color Name
Chrome
Material
Anodized Aluminum
Metal Color
Chrome
Molding Floor Thickness in Fraction (inches in fraction)
1/2
Molding Wall Thickness (mm)
12.5
Outdoor Usage
No
Tile Transition Type
Finishing and edge-protection profile with a squared reveal surface
Use For
Prevents tile edges from chipping | Create modern decorative designs, interesting contrasts, and match with tile and grout
Use On
Floor & Wall
Use With
tile
Warranty
Wall and Coutertop Profile - 5 years Lifetime Warranty
Warranty (years)
5
Weight (kg)
0.01
Weight (lb)
0.03
Width (mm)
50

  • Technical Data Sheet (EVQ125ACG)
  • Technical Data Sheet Wall and Countertop Profiles (EVQ125ACG)
  • Technical Data Sheet Wall & Countertop (2023)
  • Information Document (EVQ125ACG)
  • Article: Maximizing Ceramic Tile Installation with Trim Profiles (2015)
  • Warranty Document (EVQ125ACG)
  • Warranty Document Wall and Countertop Profiles (EVQ125ACG)
  • Warranty Document Wall & Countertop Profiles (2022)
