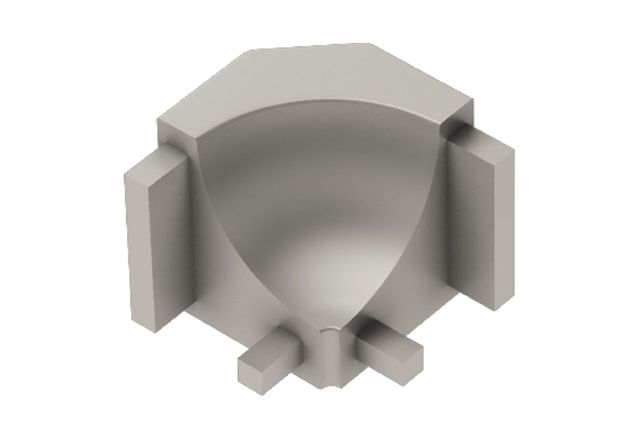

Schluter-DILEX-AHK features a single trapezoid-perforated anchoring leg, which is secured in the mortar bond coat and a cove section that forms the visible surface. The profile’s 3/8" (10 mm) radius makes DILEX-AHK an attractive option for countertop/backsplash transitions, as it prevents the accumulation of dirt and makes cleaning simple. The profile separates tile fields that meet at inside corners where limited movement is expected. DILEX-AHK prevents surface water penetration and meets the maintenance and hygienic requirements of commercial kitchens, bathrooms, and food-processing plants, or any tiled environment where a sanitary cove base is desired. DILEX-AHK is available in anodized aluminum and color-coated aluminum. Accessories for DILEX-AHK include: inside and outside corners, connectors, and end caps. Outside corners to integrate with Schluter-QUADEC are available for DILEX-AHK only.

• Designed for inside wall corners, countertop/backsplash transitions and floor/wall transitions in applications where limited movement is expected
• Eliminates the need for caulking
• Features a 3/8” (10 mm)-wide radius to prevent water penetration and dirt accumulation, making cleaning simple
• Ideal for tiled environments with high sanitary requirements, such as commercial kitchens, bathrooms, and food processing plants
• 90° outside corners are available in two configurations: rounded corner integrates with RONDEC and a square corner integrates with QUADEC
• Available in various finishes of anodized aluminum
