SKU: KERDI200/10M by Schluter

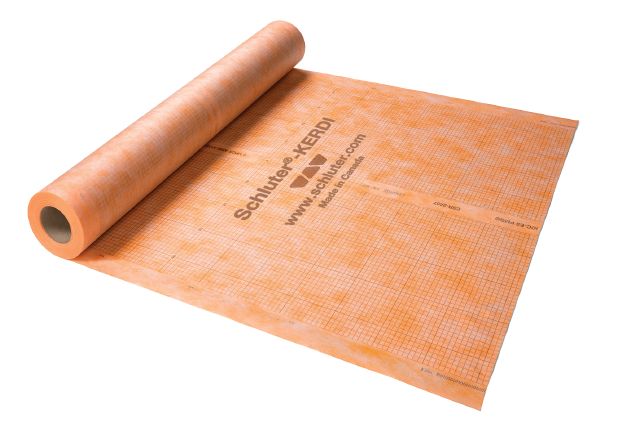

Schluter KERDI Waterproofing Membrane 3' 3" x 33' - 8 mil (108 sqft)

Schluter (KERDI200/10M) product

Currently unavailable for your ZIP code

Please edit your ZIP code or contact us for more informations

Visit more Schluter KERDI products

Additional details

Schluter-KERDI is a pliable, sheet-applied, bonded waterproof membrane and vapor retarder with limited crack-bridging capabilities. KERDI features a modified polyethylene (PEVA) core with non-woven polypropylene on both sides to anchor the membrane in the thin-set mortar. KERDI was developed as a waterproofing membrane to be used in conjunction with ceramic and stone tile coverings. Tiles can be installed directly on KERDI using the thin-bed method. Other trowel-applied covering materials, such as plaster, can also be used. KERDI has been evaluated according to the “Standard Method for the Testing and Evaluation of Volatile Organic Chemical Emissions from Indoor Sources Using Environmental Chambers, Version 1.1” for California Specification 01350 and found to comply with the VOC requirements. California Specification 01350 is referenced by various green building standards and rating systems.

  • Sheet-applied polyethylene waterproofing membrane and vapor retarder
  • Eliminates water damage which can lead to mold and mildew
  • Features a modified polyethylene (PEVA) core with non-woven polypropylene on both sides
  • Features an anchoring fleece on both sides to anchor the membrane in thin-set mortar
  • Ideal for waterproofing in conjunction with tiled surfaces on walls and floors
  • KERDI is 8-mil-thick and guarantees uniform thickness
  • The 6’ 7” (2-meter) wide roll covers wall area from floor to standard shower head height for fewer seams and a faster installation

Manufacturer
Schluter
Application
Residential
Collection Name
KERDI
Complete Roll Coverage (m²)
10
Complete Roll Coverage (sqft)
108
Complete Roll Length (ft.)
33
Complete Roll Length (m)
10
Coverage (m²)
10
Coverage (sqft)
108.00
Indoor Usage
Yes
Length (in.)
396
Length (inches in fraction)
396
Length (mm)
10058.4
Material
Modified polyethylene (PEVA) core with non-woven polypropylene on both sides
Outdoor Usage
No
Product Thickness (mil)
8
Shower Approved
Yes
Thickness (mm)
8
Use For
Waterproofing in conjunction with tiled surfaces | Vapor Retarder | In tiled showers, bathtub surrounds, residential steam showers, and other tile applications in wet areas
Use On
Wall & Floor
VOC Compliant
Yes
Vapor Barrier
No - Is Vapor Retarder
Warranty
Shower System and KERDI - 10 years Limited Warranty
Warranty (years)
10
Water Resistant
Yes
Weight (kg)
3.17
Weight (lb)
7
Width (cm)
100
Width (ft.)
3.25
Width (in.)
39
Width (inches in fraction)
39
Width (m)
1
Width (mm)
1000
