SKU: 04500 by Stabila

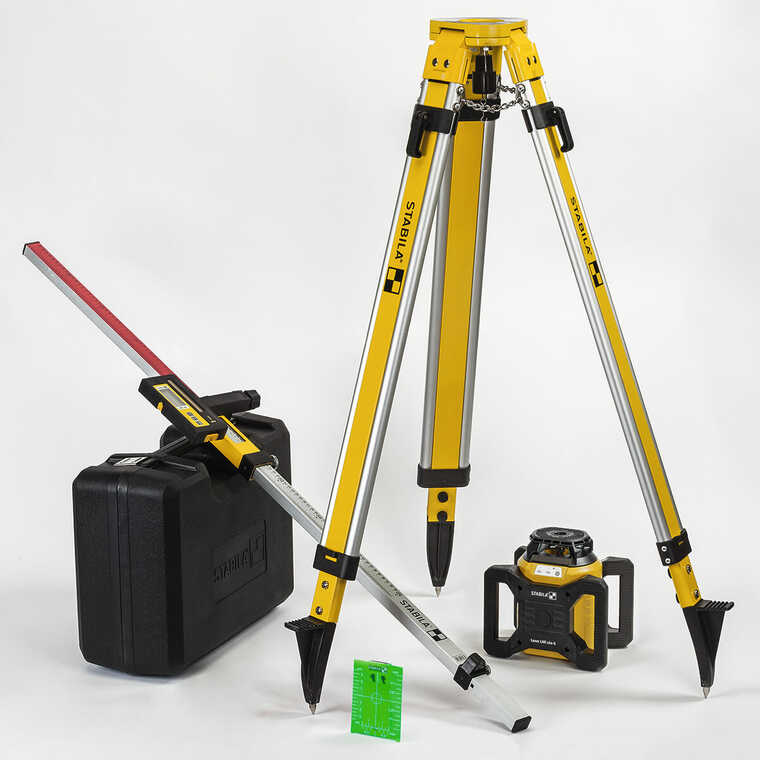

Stabila Rotary Laser Set with Tripod and Grade Rod LAR 160 G

Stabila (04500) kit

Currently unavailable for your ZIP code

Please edit your ZIP code or contact us for more informations

Additional details

Are you looking to achieve vertical and horizontal leveling for major outdoor or interior construction projects? Do you need to work precisely and avoid costly measurement errors and rework? Then the STABILA LAR 160 G with GREENBEAM technology is the right rotation laser for you. It is quick to set up, easy to operate and suitable for use over large distances when linked to a receiver. All in all, it is a high-quality product that can endure the elements and deliver precise results – exactly what you need.

  • Fully automatic, motor-driven rotary laser – high leveling accuracy of 1/8" @ 100 ft, fast self-leveling function within 20 seconds
  • STABILA GREENBEAM technology for improved visibility
  • Four laser functions for versatile use – horizontal and vertical rotation, plumb-line function and square in vertical operation
  • IP 65 – dust and waterproof
  • Shock-absorbent casing provides protection against impacts – the stable housing cover also protects the laser optics
  • Easy to use via three control buttons – on/off, tilt mode, manual mode
  • Battery drawer – easy replacement
  • Large working area with REC 160 RG set receiver – up to 2000 ft (600 m) in diameter
  • Two mounting points for vertical and horizontal applications, 5/8 x 11 threads integrated in the housing
  • Green, magnetic high-visibility plastic target plate with cross-hair. Hard shell case for laser and accessories.

Manufacturer
Stabila
Laser Class
2
Laser Diode
Green diode laser
Laser Wavelength
510–530 nm
Operating Life
20 Hours
Power
< 1 mW
Self-Levelling Range
+/- 5°
Temperature Range
-10 °C to +50 °C
Voltage (V)
2 x 1.5 V alkaline, size mono, D, LR20
Warranty (years)
2
