SKU: 432EM04V150 by Raimondi

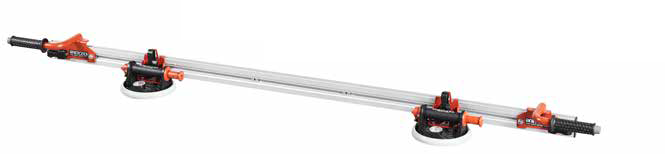

Raimondi Pair of crossbar Easy Move 150 with RV175 Suction Cups

Raimondi (432EM04V150) product

Currently unavailable for your ZIP code

Please edit your ZIP code or contact us for more informations

Additional details

EASY-MOVE 150 with 4 RV175 vacuum suctions cups.

  • Pair of handling devices for tiles/slabs up to 150 cm (4.9') long
  • Fixed length aluminum profiles
  • Equipped with 4 “RV175” vacuum suction cups (2 on each profile), perfect also for textured tiles/slabs
  • “RV175” vacuum suction cups (with die-cast aluminum body) feature vacuum gauge and stainfree rubber, both very easy to replace in case of need, as well as a corrosion-resistant vacuum valve
  • Maximum safety thanks to the vacuum gauges (placed in protected position) which constantly indicate the vacuum level inside the cup. The pump system allows to restore/increase the vacuum level at any time with the suction cup engaged
  • Each vacuum suction cup can be easily repositioned along the entire length of the aluminum bars
  • Tilting suction cups (+/- 5°) to adapt to the eventual bending of the slab and to guarantee the perfect grip in every situation. This feature is particularly useful for textured slabs
  • Suction cups are all positioned in line so to allow using EASY-MOVE 150 also on reduced width slabs (minimum width 19 cm / 7 1/2”)
  • The 4 sliding handles provided with non-slip and stain-proof grommet result in best ergonomics and handling even for wall installation. Each handle is equipped with soft rubber grip
  • It can be used in combination with EASY-MOVEMkIV crossbars, easy to be assembled and disassembled, thanks to the quick lock-release system and with safety hooks for extra safety

Manufacturer
Raimondi
Collection Name
Easy Move 150
Included in Kit
Plastic suctions cups, plastic suction cups protections, use and maintenance manual
Maximum Length (in.)
58.8
Maximum Length (inches in fraction)
58-51/64
Weight (kg)
10.4
Weight (lb)
22.9
