SKU: 400798086 by Johnsonite

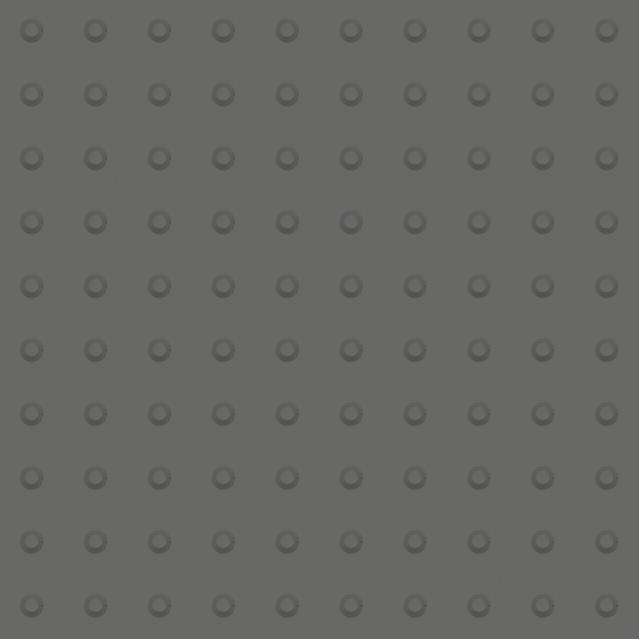

Johnsonite Rubber Tile Tactile Warning Surface in Rubber Tactile Warning #20 Charcoal 24" x 24"

  1. •
Tarkett (400798086) product

Currently unavailable for your ZIP code

Please edit your ZIP code or contact us for more informations

Visit more Johnsonite Tactile Warning Surface in Rubber products

Additional details

Tactile Warning Surface allows a balance of compliant materials with good design. Discover compliant solutions available 98 colors that are interchangeable with all of Johnsonite's rubber tile products. All Tactile Warning Tiles meet the specific size and dimension standards as required by ISO/FDIS 23599. Tactile Warning Tile (Attention Tile)Tactile Warning Tiles or Attention Tiles indicate special hazards for the blind or visually impaired. They are used to indicate changes in level in areas such as steps, ramps and escalators. TWSI Attention Tiles can also help guide the blind and visually impaired tactually, or by feel, through the soles of shoes. Tactile Guide Tile (Guide Tile)Tactile Guide Tiles or Guide Tiles are designed to aid the blind and visually impaired to traverse open spaces by indicating primary routes of travel.

  • Meets current ISO/FDIS 23599 Assistive Products for the Blind & Vision-Impaired, Canadian Standards Assoc. N551-12, Division A of Ontario Regulation 332/12, and Accessibility for Ontarians with Disabilities Act (AODA)
  • Can easily be coordinated with all Johnsonite rubber products

Manufacturer
Johnsonite
Chemical Resistance
Pass
Collection Name
Tactile Warning Surface in Rubber
Color
Gray
Color Number
20
Commercial Warranty (years)
5
Coverage (sqft)
4.00
Flammability - Flooring Panel Radiant ASTM E 648
Class 1 (mean average CRF: 0.45 w/sq cm or higher)
FloorScore Certified
Yes
Format (in.)
24" x 24"
Heat Stability ASTM F1514
ΔE ≤ 8.0
Installation Method
Glue Down
Length (ft)
2
Length (in.)
24
Length (inches in fraction)
24
Manufacturer Color Name
Charcoal
Material
Rubber
Pattern
Solid
Slip Resistance ASTM D2047
SCOF ≥ 0.5
Smoke Density ASTM E662
< 450
Static Load Limit ASTM F 970
250 psi, ≤ 0.005"
Surface Texture
Tactile Warning
TVOC Emission
≤ 500 µg / m³
Thickness (in.)
0.125
Thickness (inches in fraction)
1/8
Thickness (mm)
3.18
Weight (kg)
2.72
Weight (lb)
6
Width (ft.)
2
Width (in.)
24
Width (inches in fraction)
24

  • User Guide Tactile Warning Surface Installation (2017)
  • Information Document Tactile Warning Surface Specifications (2017)
