SKU: SL4048-BSS-TILEIN by Oatey

Oatey Shower Linear Drain 40" to 48" Kit QuickDrain ShowerLine PVC 2" with Tile-In Cover Brushed Stainless Steel 48"

Shower Linear Drain 40" to 48" Kit QuickDrain ShowerLine PVC 2" with Tile-In Cover Brushed Stainless Steel 48"
Oatey (SL4048-BSS-TILEIN) product

Currently unavailable for your ZIP code

Please edit your ZIP code or contact us for more informations

Additional details

With a wide variety of styling options and superior installation flexibility, QuickDrain linear drains offer wall-to-wall coverage that promotes effective and efficient water drainage. ShowerLine Tile-In Kits are available in a premium brushed stainless steel finish that adds seamless, modern style to your shower space. Site-sizeable components allow for modification and flexibility while simplifying the installation process. Complete your shower system with a pre-sloped shower pan and waterproofing accessories, all of which are included in ShowerLine Installation Kits. Elevate your shower design with QuickDrain.

  • Used when installing linear shower drains in curbed or curbless applications
  • Drain body made of PVC
  • Compatible with the following types of waterproofing: sheet waterproofing membrane, topical liquid waterproofing, hot mop, and various forms of shower pan liner including PVC (PolyVinyl Chloride), CPE (Chlorinated PolyEthylene), vinyl, and rubber)
  • Drain cover is site-sizeable for easy modification and flexibility
  • Drain cover is site-sizeable for easy modification and flexibility

Manufacturer
Oatey
Application
Residential, Commercial and Industrial
Collection Name
QuickDrain ShowerLine
Color
Gray
Design
Tile-In
Drain Material
PVC
Grate Finish
Brushed Stainless Steel
Grate Size (in)
48
Grate Size (mm)
1219.2
Height (in.)
2.38
Height (inches in fraction)
2-3/8
Height (mm)
60.5
Includes

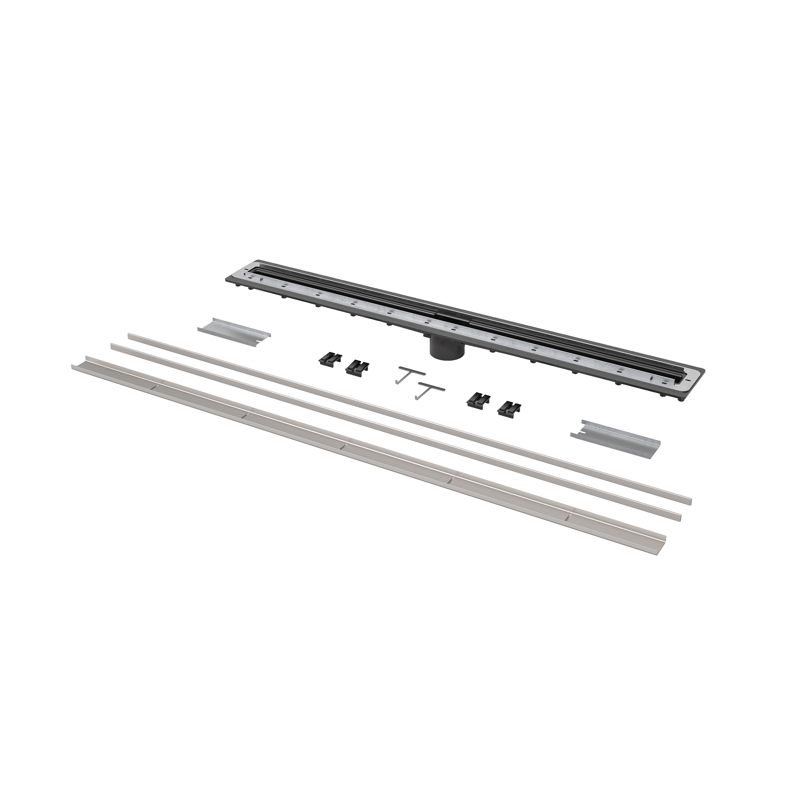

1 x PVC Drain Body, 1 x Tile-In Stainless Steel Drain Cover, 1 x Clampin Collar, 2 x Cover Channels, 2 x Through Extensions, 34 x Screws, 6 x Adjustable Height Spacers, 1 x Cover Removal Key
Indoor Usage
Yes
Kit
Yes
Length (cm)
121.92
Length (in.)
48
Length (inches in fraction)
48
Shower Approved
Yes
Shower Base & Shower Kits Type
Shower Drain
Traffic Classification
Residential, Commercial and Industrial
Use For
Installing linear shower drains in curbed or curbless applications
Use With
QuickDrain Sheet Waterproofing or Topical liquid waterproofing, Oatey Shower Pan Liner, Hot mop material
Water Resistant
Yes
Waterproof
No

  • Sales Sheet Oatey Product Catalog (2023)
  • Technical Data Sheet QuickDrain ShowerLine Drain Kit (2024)
  • User Guide ShowerLIne Drain Installation (2024)
