SKU: 401898035 by Johnsonite

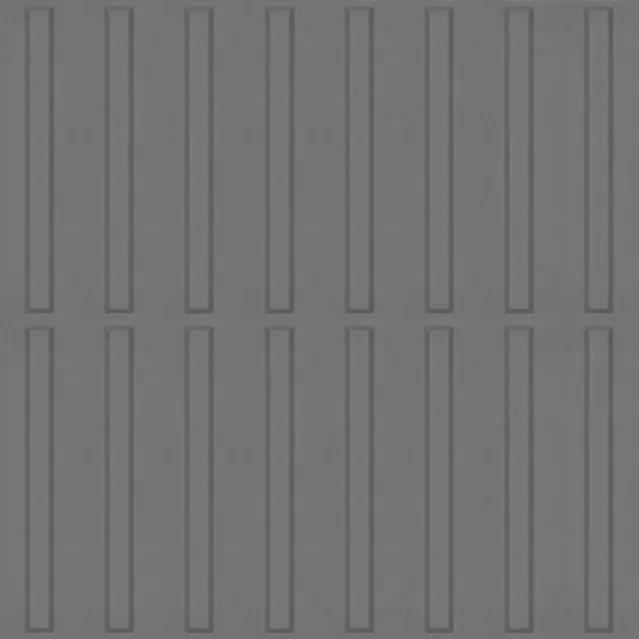

Johnsonite Tactile Guiding Tile in Rubber - Tactile Guide Solid #63 Burnt Umber 24" x 24"

Tactile Guiding Tile in Rubber - Tactile Guide Solid #63 Burnt Umber 24" x 24"
Johnsonite (401898035) product

Currently unavailable for your ZIP code

Please edit your ZIP code or contact us for more informations

Additional details

Tactile Warning Surface allows a balance of compliant materials with good design. Discover compliant solutions available 114 colors that are interchangeable with all of Johnsonite's rubber tile products. All Tactile Warning Tiles meet the specific size and dimension standards as required by ISO/FDIS 23599. Tactile Warning Tile (Attention Tile) Tactile Warning Tiles or Attention Tiles indicate special hazards for the blind or visually impaired. They are used to indicate changes in level in areas such as steps, ramps and escalators. TWSI Attention Tiles can also help guide the blind and visually impaired tactually, or by feel, through the soles of shoes. Tactile Guide Tile (Guide Tile) Tactile Guide Tiles or Guide Tiles are designed to aid the blind and visually impaired to traverse open spaces by indicating primary routes of travel.

  • Meets current ISO/FDIS 23599 Assistive Products for the Blind & Vision-Impaired, Canadian Standards Assoc. N551-12, Division A of Ontario Regulation 332/12, and Accessibility for Ontarians with Disabilities Act (AODA)
  • Available in 114 solid colors
  • Can easily be coordinated with all Johnsonite rubber products
  • Cradle to Cradle Certified Silver

Manufacturer
Johnsonite
Chemical Resistance ASTM F 925
Good
Collection Name
Tactile Guiding Surface - Rubber
Color
Gray
Color Number
63
Coverage (sqft)
4.00
Coverage (sqyd)
0.44
Design
Tactile Guide Solid
Flame Spread Indicator
Class B < 450 smoke
Flammability
Class 1 (mean average CRF: 0.45 w/sq cm or higher)
Flammability - Flooring Panel Radiant ASTM E 648
Class 1 (mean average CRF: 0.45 w/sq cm or higher)
FloorScore Certified
Yes
Length (cm)
61
Length (in.)
24
Length (inches in fraction)
24
Manufacturer Color Name
Burnt Umber
Material
Rubber
Pattern
Bars
Phthalate-Free
Yes
Slip Resistance ASTM D2047
SCOF ≥ 0.5
Smoke Density ASTM E662
< 450
TVOC Emission
≤ 500 µg / m³
Thickness (in.)
0.28
Thickness (inches in fraction)
1/4
Thickness (mm)
7.2
Weight (kg)
3.18
Weight (lb)
7
Width (cm)
61
Width (in.)
24
Width (inches in fraction)
24

  • Technical Data Sheet Tactile Walking Surface Indicators (2024)
  • Sales Sheet Safe Sense - Tactile Walking Surface Indicators (2019)
  • User Guide Rubber Tile Installation Instruction (2020)
  • Information Document Tactile Walking Surface Indicators (TWSI) Maintenance Instructions (2019)
  • Warranty Document Tarkett Limited Warranty (2024)
