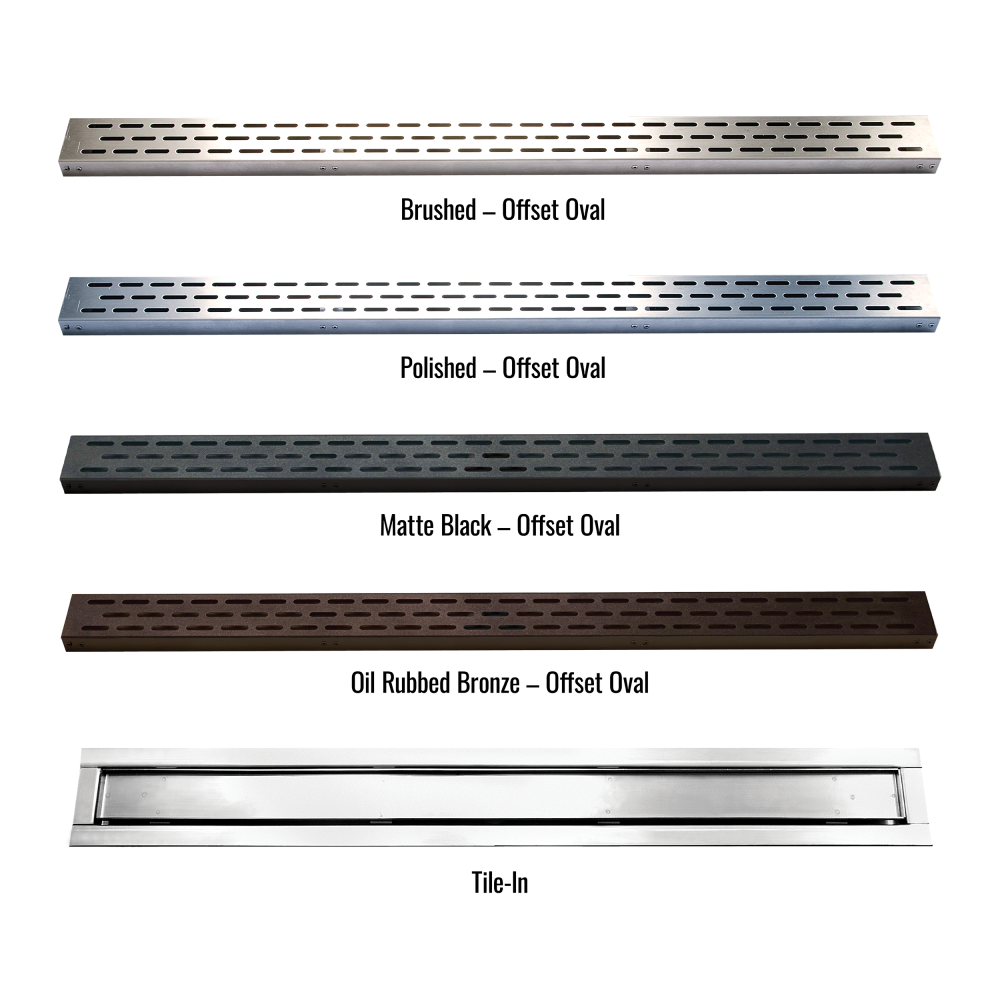

HYDRO BAN Linear Drains are low profile linear floor drains specifically designed for bonded waterproofing installations with HYDRO BAN waterproofing membranes. The HYDRO BAN Linear Drain Troughs are designed with a “V” slope to enhance drainage and can be paired with any HYDRO BAN Point Drain, available in multiple design options including off-set oval, wedge wire, or tile-in. HYDRO BAN Linear Shower Drains allow for the use of large format tile or stone installations in a shower with a single plane slope to the drain. HYDRO BAN Linear Shower Drains can be installed near the wall, entry or at medial locations in a variety of areas requiring waterproof applications. HYDRO BAN Linear Shower Drains are available with standard vertical waste line, a horizontal side outlet or a threaded connector for clamping ring drain installations. Trough and grates are sold separately. Custom sizes are available upon request. Available in multiple drain finishes and colors in stainless steel, including Brushed, Polished, Oil Rubbed Bronze, and our newest black drain color - Matte Black.

• Precision hand crafted using heavy duty 304 L stainless steel provides strong long-lasting performance; scratch, wear and rust resistant
• V-bottom trough for improved drainage flow, allows for a simple shower installation
• Allows for a single slope to drain making it ideal for use with large format tile (eliminates pre-slope and primary shower pan)
• Simple trough and grate combination provides quick and easy installation
• Linear drain height adjusts from 3/8" - 3/4" (9.5 mm – 19 mm) to accommodate larger range of tile with one grate
• Custom sizes available for versatility and flexibility
• Threaded and side outlet options available to tackle a wide variety of installation types
• Compatible with HYDRO BAN waterproofing membranes allowing for direct bond to stainless steel flange edge
• System Integration to fit with LATICRETE shower pans and mud bed applications
