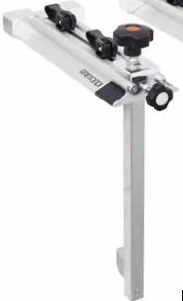

Raimondi Tip-Top face-up miter clamping devices designed to work with fully visibility of the corner on tiles and stones of any length.

• It allows the user to see the corner with no need to bend
• Each TIP-TOP kit consists of two devices / units
• Independent double micrometric adjustments (vertical - up and down / horizontal - back and forward) allows to easily create the perfect corner
• No tile length limits make it perfect for large format porcelain tiles as well
• As a general guideline we recommend to use a pair (1 kit) on tiles or stones up to 200 cm (6.6') length. For longer tiles just add additional units. Slider adjustment to accommodate laminated edges from 30 to 300 mm (1 3/16” – 12)
• Steps/top dimensions (performances): maximum tile length: ∞ (infinite / no limit of length); Riser: maximum 300 mm (12”); minimum 30 mm (1 3/16”). Maximum tile width: ∞ (infinite / no width limit);
• Suitable also for corner gluing (3 tiles). At least two kits (4 devices) are necessary to perform this particular operation
• The 3 ballasts weighing a total of 1.2 kg (2.6 lbs) which equip each device contribute to create the perfect weights distribution to keep the tiles in position
• The 2 stain-free rubber suction cups (Ø 88 mm; 3.5”) which equip each device help keeping them in place while doing up & down /back & forward micro-adjustments
• Black reference bands make it easy and fast to place the devices on the top of the tiles in the right position
