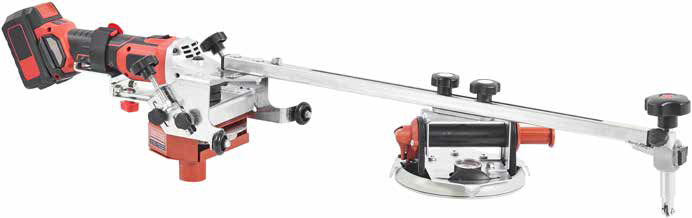

Raimondi MOTOKOMPASS is a device designed to create rounded or with rounded corner furnishing elements.
-
Possible diameters to perform: minimum 30 cm, maximum 100 cm
-
It is possible to perform both half/bullnose and 45° miter (jolly) profiles
-
Half/bullnose profiles can be performed on slabs and tiles with a thickness from 5 to 12 mm. Available radius: 6 mm, 10 mm, 12 mm
-
45° miter (jolly) profiles can be performed on slabs and tiles with a thickness from 3 to 12 mm
-
For finishing/polishing the shaped edges, it is recommended to use an angle grinder freehand (max 1400 rpm) with diamond pads
-
It can be either used dry (with a dust extractor) or with water (with kit for wet cut art. 433PWW A)
-
Suitable with almost all angle grinders with power between 600-1100W
-
Available for grinders with M14 arbor attachment (Art. 433KOMOHR) and for angle grinders with 5/8“ - 11 arbor attachment (Art. 433KOMOHUS)
-
Angle grinder and diamond tools are not included: they have to be purchased separately
