SKU: ADV-D-1282-BK by Surewerx

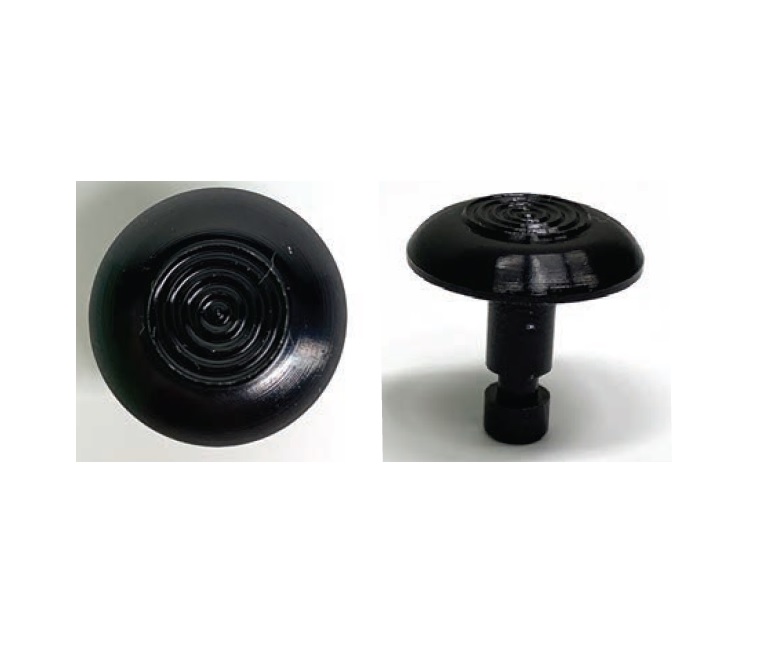

Surewerx Advantage One Individual Domes Concentric Rings Aluminum Black 7/8"

Advantage One Individual Domes Concentric Rings Aluminum Black 7/8"
Kinesik (ADV-D-1282-BK) product

Currently unavailable for your ZIP code

Please edit your ZIP code or contact us for more informations

Visit more Surewerx Advantage One products

Advantage One Individual Domes Stainless Steel with Black Carborundum Center 5/16"
Advantage One Individual Domes Cross Hatch Stainless Steel 5/16"
Advantage One Individual Domes Concentric Rings Brass 7/8"
Advantage One Individual Domes Concentric Rings Stainless Steel 7/8"
Advantage One Individual Domes Concentric Rings Stainless Steel PVD Coated Black 7/8"
Advantage One Individual Bar Linear Grooves Stainless Steel 11" x 1"
Advantage One Individual Bar Cross Hatch Stainless Steel 11" x 1"
Advantage One Individual Bar Black Carborundum Stainless Steel 11" x 1"
Advantage One Individual Domes Concentric Rings Black Carborundum with Stainless Steel Center 7/8"
Advantage One Individual Domes Concentric Rings Stainless Steel with Yellow Poly Ring 7/8"

Additional details

Advantage ONE Plate Tactile Walking Surface Indicators (TWSI) have been designed for all interior accessibility solutions. Advantage ONE Plate indicators are machined from a solid piece of 316L Marine Grade Stainless Steel and fastened to a solid Stainless Steel Plate. This process enhances the aesthetics of the tile, but also have been proven to be strong and durable. Advantage ONE Plate incorporates an integral texture in the stainless steel for permanent slip resistance. Our products have undergone a rigorous series of tests to ensure that they meet and exceed guidelines developed by the AODA, CSA, ISO, and provincial and national building codes. Advantage ONE Plate TWSI products offer the lowest lifecycle cost, and eliminates long term safety concerns and accessibility limitations.

  • Tactile Walking Surface Indicators for following applications : revolving door approaches, wheelchair ramps, parking areas, top of stair landings, turnstile and gate access, escalator approaches, transit platforms and multi-modal transit stations
  • Compliance : Kinesik Engineered Products Incorporated is in full compliance with Canadian Accessibility Codes. Our tactile walking surface indica-tors meet the most recent AODA, CSA, and ISO, provincial and national building codes. Kinesik Engineered Products Incorporated is your one stop source for all tactile systems for people who have visual impairments, and only Kinesik provides a complete range of products designed for safety and convenience
  • Innovative adhesive capture design
  • Optimum anti-slip design
  • Resistant to heavy traffic abuse and maintenance machinery

Manufacturer
Surewerx
Collection Name
Advantage One
Color
Black
Diameter (inches in fraction)
7/8
Diameter (mm)
22
Height (in.)
0.83
Height (inches in fraction)
53/64
Height (mm)
22
Inside diameter (mm)
12
Length (in.)
0.83
Length (inches in fraction)
53/64
Length (mm)
22
Manufacturer Color Name
Black
Material
Aluminum
Pattern Type
Concentric Rings
Residential Warranty (years)
5
Traffic Classification
Heavy
Use For
Revolving Door Approaches, Wheelchair Ramps, Parking Areas, Top of Stair Landings, Turnstile and Gate Access, Escalator Approaches, Transit Platforms and Multi-Modal Transit Stations
Warranty
5-Year manufacturer's warranty
Warranty (years)
5
Weight (kg)
0.02
Weight (lb)
0.05
Width (in.)
0.83
Width (inches in fraction)
53/64
Width (mm)
22

  • Technical Data Sheet Advantage One - Domes and Bars (ADV-D-1282-BK)
  • User Guide Advantage One - Domes and Bars - Intallation Instructions (ADV-D-1282-BK)
  • User Guide Advantage One - Domes and Bars - Drawing (ADV-D-1282-BK)
