SKU: SET3G22-N by Simpson Strong Tie

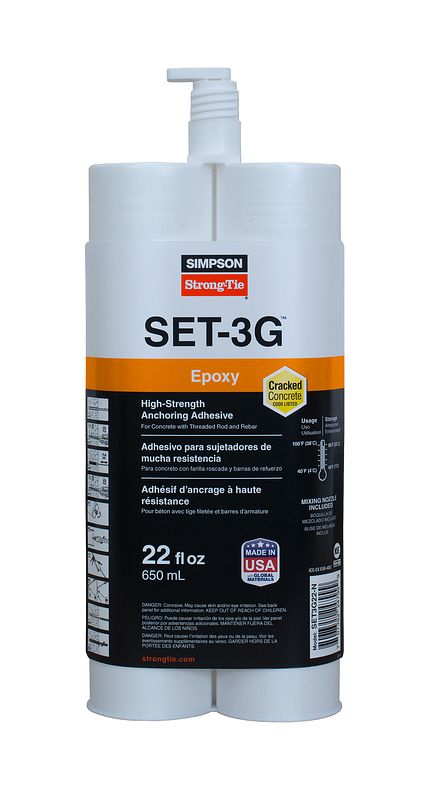

Simpson Strong Tie Epoxy Anchoring Adhesive SET-3G with Nozzle and Extension 22 oz

  1. •
Simpson Strong Tie (SET3G22-N) product

Currently unavailable for your ZIP code

Please edit your ZIP code or contact us for more informations

Additional details

SET-3G is the latest innovation in epoxy anchoring adhesives with high design strength and proven performance. SET-3G is a 1:1 ratio, two-component, anchoring adhesive for concrete (cracked and uncracked). SET-3G installs and performs in a variety of environmental conditions and temperature extremes.

  • Exceptional performance — superior bond strengths permit ductile solutions in high seismic areas
  • Design flexibility — improved sustained load performance at elevated temperature
  • Approved for installation with multiple vacuum-drill bit systems without further hole cleaning. See Code Report (ESR-4057) and Engineering Letter for approved systems
  • Wire brush hole-cleaning system for conventional blow-brush-blow cleaning method for anchoring
  • With higher bond strengths, ductile solutions can often be achieved with SET-3G in high seismic areas
  • Low-odor formulation

Manufacturer
Simpson Strong Tie
Collection Name
SET-3G
Hardness
Shore D 84
Included in Kit
One mixing nozzle and extension
Mixing Ratio
1:1
Ounce (oz)
22
Shelf Life
24 months
TVOC Emission
2 g/L
Use For
Threaded rod anchor and rebar dowel installations in cracked and uncracked concrete under a wide variety of environmental installation and use conditions. Installation in downward, horizontal and upwardly inclined (including overhead) orientations.
Volume (ml)
660
Warranty (years)
1
Water Absorption Rate
0.0013

  • Sales Sheet 2022-2025 Product Guide Simpson Strong-Tie
  • Safety Data Sheet SET-3G High Strength Epoxy Adhesive
  • Technical Data Sheet SET-3G Epoxy Adhesive Used As Paste Over
