SKU: HD1 by Bartell Morrison

Bartell Morrison Hepa Dust Collector

Bartell Morrison Inc. (HD1) product

Currently unavailable for your ZIP code

Please edit your ZIP code or contact us for more informations

Additional details

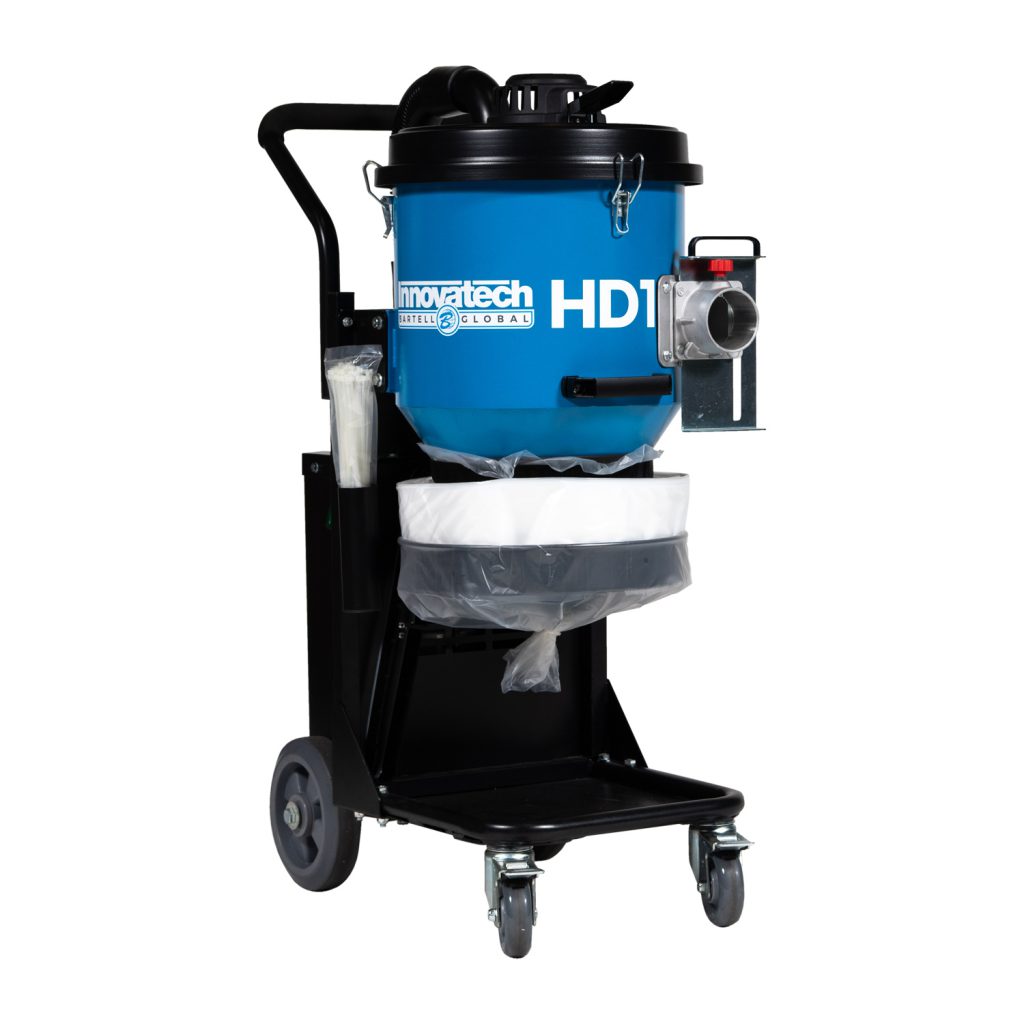

The HD1 is a SINGLE-motor HEPA dust extractor featuring a two-stage filtering system comprised of a main conical filter and ONE HEPA filter.

  • Reverse-air jet-pulse filter cleaning system effectively cleans and removes dust build-up on the filters
  • Easy to use inlet closure door eliminates the need to remove hoses when pulsing and cleaning filters
  • Easily connects to hand-operated power tools to extract concrete dust while cutting and grinding
  • Equipped with a continuous-bag disposal system for effective dust collecting and safe and easy disposal of concrete dust
  • Inlet : 50 mm
  • Air Flow : 120 cfm
  • Water lift : 100"
  • Pre-filter (f8) : 16 ft2, >99.5% @1.0um
  • HEPA Filter (H13) : 13 ft2, >99.99% @0.3um

Manufacturer
Bartell Morrison
Amperage (A)
8 A
Height (cm)
65
Height (in.)
26
Height (inches in fraction)
26
Length (cm)
42
Length (in.)
16.5
Length (inches in fraction)
16-1/2
Power
1.6 HP
Voltage (V)
120 V
Weight (kg)
35
Weight (lb)
77
Width (cm)
107
Width (in.)
42
Width (inches in fraction)
42
