SKU: HD2 by Bartell Morrison

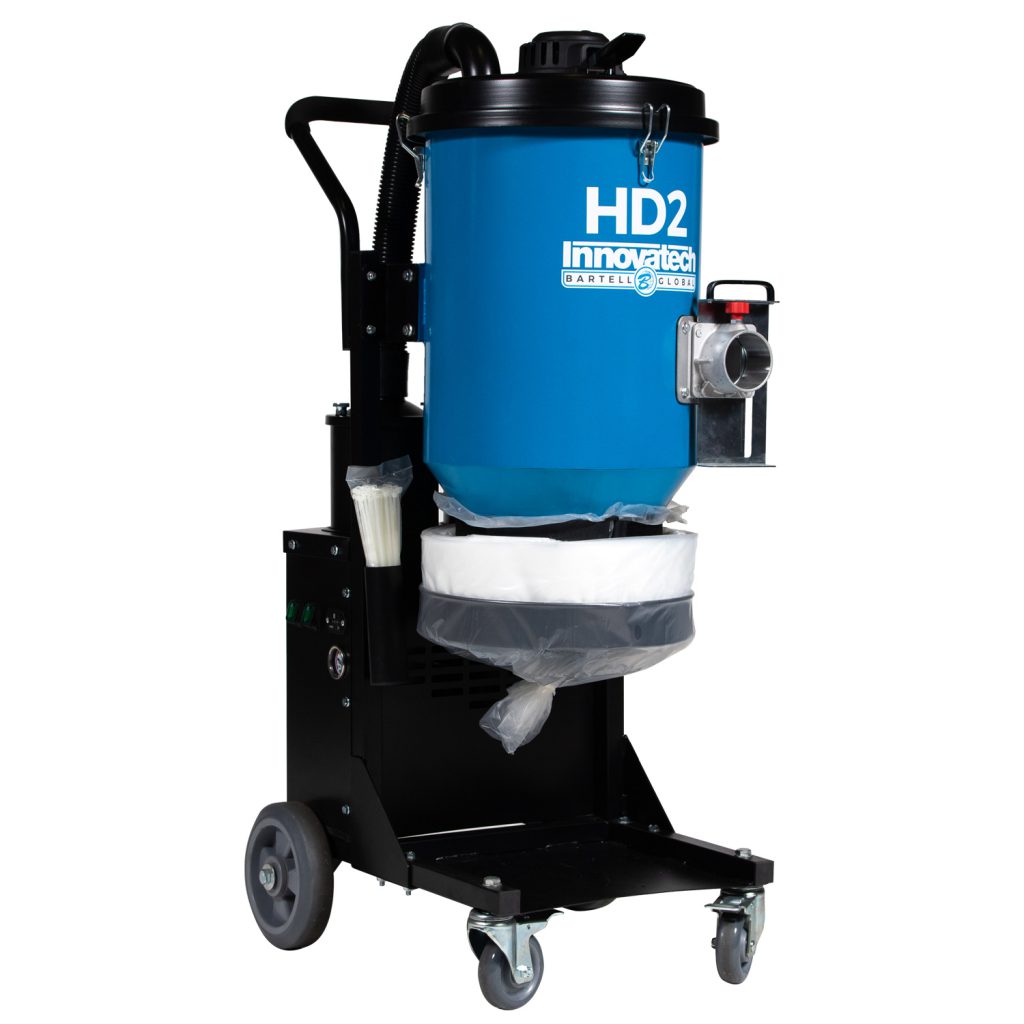

Bartell Morrison Hepa Dust Collector

Bartell Morrison Inc. (HD2) product

Currently unavailable for your ZIP code

Please edit your ZIP code or contact us for more informations

Additional details

The HD2 is a TWO-motor HEPA dust extractor, that features a two-stage filtering system comprised of one main conical filter and two HEPA filters.

  • HEPA filters remove at least 99.97% of airborne particles 0.3 micrometers (µm) in diameter. securing a high standard of quality and safety
  • 2 Individual motor switches – provides variable suction strength and power
  • Reverse-air jet-pulse filter cleaning system effectively cleans and removes dust build-up on the filters
  • Easy to use inlet closure door eliminates the need to remove hoses when pulsing and cleaning filters
  • Easily connects to hand-operated power tools to extract concrete dust while cutting and grinding
  • Equipped with a continuous-bag disposal system for effective dust collecting and safe and easy disposal of concrete dust
  • Inlet : 50 mm and Air Flow : 240 cfm
  • Water lift : 100"
  • Pre-filter (f8) : 34 ft2, >99.5% @1.0um
  • HEPA Filter (H13) : 26 ft2 >99.99% @0.3um

Manufacturer
Bartell Morrison
Amperage (A)
16 A
Height (cm)
65
Height (in.)
26
Height (inches in fraction)
26
Length (cm)
58
Length (in.)
23
Length (inches in fraction)
23
Power
3.2 HP
Voltage (V)
120 V
Weight (kg)
54
Weight (lb)
119
Width (cm)
126
Width (in.)
50
Width (inches in fraction)
50
