SKU: 12D1 by Sigma

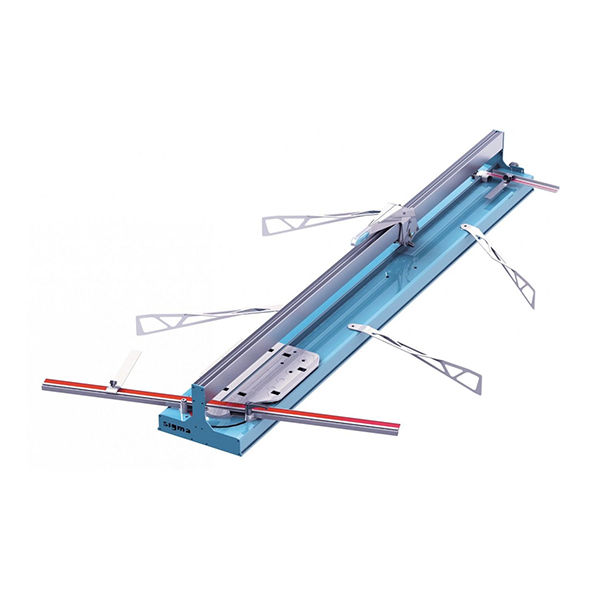

Sigma Push Manual Tile Cutter Serie XL for Large Size 81"

Sigma (12D1)

Currently unavailable for your ZIP code

Please edit your ZIP code or contact us for more informations

Additional details

Designed to be used by professional and DIY, the Sigma 12D1 XL is Sigma’s latest 205 cm tile cutter. With a long base to support porcelain and ceramic tiles, it is the professional tile cutter of choice. The main characteristics of this tile cutter is its precision ability to easily cut most common porcelain and ceramic tiles up to 19mm thick. Cutting of the tile is achieved by placing the tile against the measurement arm which can swivel in both directions up to 45 degrees allowing a neat and clean cut at any chosen. “XL” Big tile cutter with frame and sliding guide made of light hardened alluminium alloy. The push handle with cushioned engraving, runs completely on ball bearings and stainless steel runners. Equipped with a double measures for parallel cuts and pivoting support from + 45 ° to -45 °.

  • Every Sigma tile cutter comes with a full 5 year manufactures warranty
  • Precision cutting of most quality ceramic and porcelain tiles
  • Quality materials, all machines are made of high grade aluminium and steel
  • The cutting wheel is made from Tungsten steel and is easily replaceable when and if required by the user
  • Plastic feet are mounted to the bottom of the breaking arm to ensure no damage to the tile surface during the breaking process
  • Fast, clean accurate cuts are easily achievable with minimal training
  • True sprung loaded base plates
  • Flip down breaker allows breaking all the way along tile length
  • Rotating measure bar rotates up to 45 degrees either way
  • Fitted with easy transport wheels on one end

Manufacturer
Sigma
Breaking Strength
770 kg
Collection Name
Serie XL
Cutting Angle
45°
Cutting Width (cm)
205
Cutting Width (in.)
80.7
Diagonal Cut Capacity
57" (145 cm)
Handle Type
Push handle with cushioned scoring
Includes
Double lateral measures for parallel cuts | Spring loaded scoring system | 13 mm scoring wheel
Material
Light Hardened Aluminum Alloy & Stainless Steel
Maximum Tile Thickness (in.)
0.75
Maximum Tile Thickness (inches in fraction)
3/4
Maximum Tile Thickness (mm)
19
Tile Cutter Scoring Wheel Specifications
13 mm | Score by pushing (can pull also)
Use For
Porcelain tiles | Especially suited to uneven and riven faced tiles
Warranty
5-Year manufacturer's warranty
Weight (kg)
36
