SKU: 40478 by Ardex

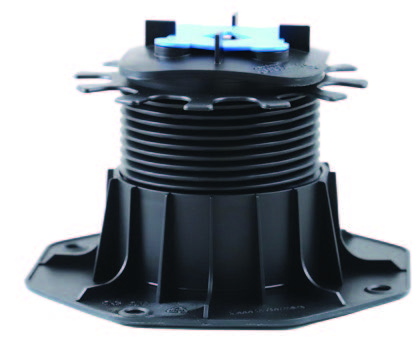

Ardex Tile Paver Support TerraMaxx TSL 2 XL from 4-3/4" to 8-1/8"

Tile Paver Support TerraMaxx TSL 2 XL from 4-3/4" to 8-1/8"
Ardex (40478) product

Currently unavailable for your ZIP code

Please edit your ZIP code or contact us for more informations

Additional details

Pre-assembled raised flooring support system for 3/4” (2 cm)+ porcelain tile or pavers. TerraMaxx TSL Pedestals enable quick and simple installation on balconies, roof terraces and other walk-on exterior surfaces. Rain water runs off through the open joints. Piping, power lines and floor gullies can be concealed in the cavity between the floor covering and the substrate and remain accessible since individual tiles can be lifted or exchanged as needed.

  • For pre-sloped exterior wood or concrete balconies, patios, terraces, etc
  • Helps prolong the life of exterior tile and stone applications
  • Easy level and pitch adjustments (no tools required)
  • Pre-assembled in 5 sizes and adapter (80 mm)
  • Adjustable height from 1” to 7-7/8”
  • Integrated tile / stone spacers 1/16” (2 mm) with available spacer attachment to expand to 5 mm
  • Built-in sound dampener reduces sound up to 30 dB

Manufacturer
Ardex
Collection Name
TerraMaxx TSL-2 XL
Maximum Height (in.)
8.13
Maximum Height (inches in fraction)
8-1/8
Maximum Height (mm)
206.4
Minimum Height (in.)
4.72
Minimum Height (inches in fraction)
4-3/4
Minimum Height (mm)
120
Outdoor Usage
Yes
Use For
Leveling
Weight (kg)
0.3
Weight (lb)
0.66

  • Technical Data Sheet Ardex TerraMaxx TSL (2021)
